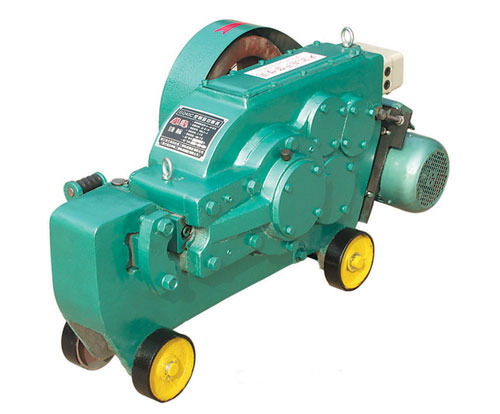

CQ40C Steel Bar Cutting Machine (Closing Type)



Category:
Architecture machine series
Number:
Description:
This is our new product that we depend on user demands to improve on the former opening basic. It has system closing lubricate and clutch structure. So this machine has advantage, such as convenience for operation and maintain, on the safe side, high benefit, light weight and save energy. It is necessarily machine for machining reinforcing steel bar in the architecture Industry. This machine can cut off round steel, flat steel, square steel and angle steel etc.
Main technique parameter
Cut times: 32times/minute
Cut reinforcing steel bar diameter:6-40mm(A3 steel)
6-36mm(H screw thread steel)
Cut reinforcing steel bar intension: <450Mpa
Electricity model/voltage: Y100L-2
Power: 3KW/380V
Size (LXWXH):1190*450*680mm
Weight:450kgs
