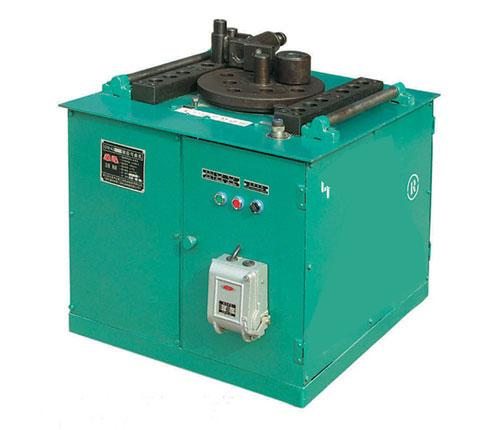

CW40Z Steel Bar Bending Machine


Category:
Architecture machine series
Number:
Description:
This machine is using for all kinds of reinforcing steel bar bending. It has advantages that can auto-bend in the manual work, besides it can finish primary capability. The process is easily and it can finish all kinds of shape under assistant correspond pole. The GW40Z machines introduce the non-touch switch sensor and inset
microcomputer controlling. It conquers that shortcoming of bend angle error. It is renovate exchange product of tradition bend machine.
Main technique parameter
Cut reinforcing steel bar diameter:6-40mm(A3 steel) 6-36mm(H screw thread steel)
Cut reinforcing steel bar intension: <450Mpa
Rotate speed: 5-10round times/minute
Power/rotate speed/voltage: 3KW/1400r.p.m/380V
Size (LXWXH): 750*750*720mm
Weight (include accessory): 415KGS
