M5: Heavy cutting edge machine (variable speed)
HYDRO-FLOAT /Buoyancy/Floating Power Socket Base
¡@
This is new design generation; emphasize body technologic principle, increase work efficiency. In addition, this machine replaces the traditional machine for cutting the edge. Also, equipped with HYDRO-FLOAT facility for ease of operation.
.jpg)
|
Voltage |
Single Phase 220V |
|
Power |
3HP |
|
RPM |
3000~10000 RPM with Variable Speed Control |
|
Max. Stone Thickness |
60mm |
|
Diamond Grinding Wheel |
External Diameter Under 110mm |
|
Weight |
77lbs (35kg) |

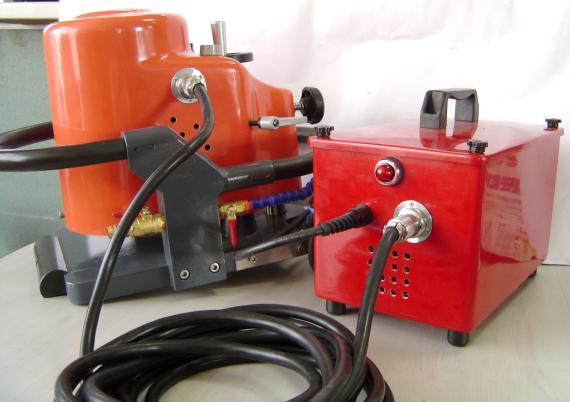

The right red box is VOLTAGE CONTROL BOX (Transformer and Frequency Converter inside)
The Water Outlet is changeable by adjust the switch.
