MANUFACTURING:
1. FEVF: INVERTER: AC MOTOR TORQUE CONTROLLER
2. FEVF: INVERTER: AC MOTOR SPEED CONTROLLER
3. FERC: INVERTER AUXILIARY CONTROLLER (1T05)
4. FESI: SINGLE ISOLATOR (VOLTAGE AND CORREN SINGLE)
5. DC MOTOR 4 QUADRANT SCR ORIVA 1/8 HP ~ 500 HP
6. DC MOTOR SCR CONTROLLER 1/8 HP ~ 500 HP
7. DC MOTOR 1/8 HP ~ 500 HP
Torque Inverter Variable speed 20:1 Variable Torque 20:1

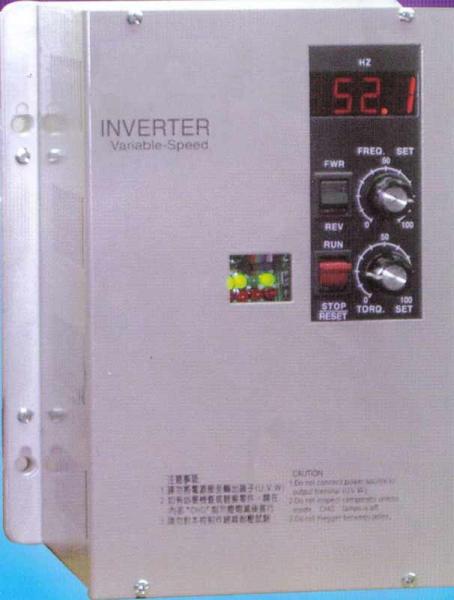

FEVF INVERTER AC MOTOR TORQUE CONTROL
Features:
Torque Converter + 3 Phases Reaction Motor or Invented Motor
It can manually adjust the torque or cooperate with the tension to control the signal DC0~10V, DC0~5V or 0~20mA with the automatic control.
It can reach the control of torque、 rollup、 tension and pull.
With the lowest torque setting and prevent from loosing.
Core rollup and cover rollup.

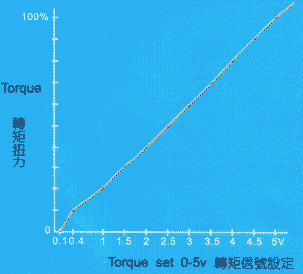

15Hz 220V Motor Torque curve at 60Hz
Torque :Torque set 0-5v Signal Setting
FEVF
| Power Supply | Motor Specification | P5-05 | |
| 1:Power Phase | 1:Input Voltage | 2:Output Voltage |
P5 : 1/2HP 01 : 1HP 02 : 2HP 03: 3HP 05 : 5HP 07 : 7.5HP 10 : 10HP . . 60 : 60HP |
| 1 : single phase 3 : 3 phases |
1 : 110V(AC) | 2 : 3 phases220V 3 : 3 phases380V 4 : 3 phase440V |
|
| 2 : 220V(AC) | |||
| 3 : 380V(AC) | |||
| 4 : 440V(AC) | |||
Input Spec •Output Spec
A: Power Supply Single Phase 110V•Motor 3 Phases 220V : 112P5•11201
B: Power Supply Single Phase 220V•Motor 3 Phases 220V : 122P5•11201•12202•12203•12205
C: Power Supply Single Phase 220V•Motor 3 Phases 380V : 123P5•2301
D: Power Supply Single Phase 220V•Motor 3 Phases 440V : 124P5•12401
E: Power Supply Single Phase 220V•Motor 3 Phases 220V : 322P5•32201•32202•32203•32207•32210••••••32260
F: Power Supply Single Phase 380V•Motor 3 Phases 380V : 333P5•33301•33302•33303•33307•33310••••••33360
G: Power Supply Single Phase 440V•Motor 3 Phases 440V : 344P5•34401•34402•34403•34407•34410••••••34460
Specification
|
Type |
Power Supply |
Input Current |
Motor (HP) |
Output power (3 phases) |
Output Current |
Motor |
|
112P5 |
single phase 110V |
11A |
1/2HP(0.37KW) |
3 phases 0~220V |
2.4A |
3 phases 220V motor or 3 phases 380V or 440V motor |
|
11201 |
single phase 110V |
16A |
1HP(0.75KW) |
3 phases 0~220V |
4.5A |
|
|
122P5 |
single phase 220V |
6.3A |
1/2HP(0.37KW) |
3 phases 0~220V |
2.4A |
|
|
12201 |
single phase 220V |
10A |
1HP(0.75KW) |
3 phases 0~220V |
4.5A |
|
|
12202 |
single phase 220V |
20A |
2HP(1.5KW) |
3 phases 0~220V |
7A |
|
|
12203 |
single phase 220V |
30A |
3HP(2.2KW) |
3 phases 0~220V |
10A |
|
|
12205 |
single phase 220V |
50A |
5HP(3.7KW) |
3 phases 0~220V |
16A |
|
|
123P5 |
single phase 220V |
6A |
1/2HP(0.37KW) |
3 phases 0~380V |
1.5A |
|
|
12301 |
single phase 220V |
10A |
1HP(0.75KW) |
3 phases 0~380V |
2.3A |
|
|
124P5 |
single phase 220V |
6A |
1/2HP(0.37KW) |
3 phases 0~440V |
1.5A |
|
|
12401 |
single phase 220V |
10A |
1HP(0.75KW) |
3 phases 0~440V |
2.3A |
Specification
|
Type |
322P5 |
32201 |
32202 |
32203 |
32205 |
32207 |
32210 |
32215 |
32220 |
32225 |
32230 |
32240 |
32250 |
32260 |
|
Motor Output (KW) |
0.4 |
0.75 |
1.5 |
2.2 |
3.7 |
5.5 |
7.5 |
11 |
15 |
18.5 |
22 |
30 |
37 |
45 |
|
Motor (HP) |
1/2 |
1 |
2 |
3 |
5 |
7.5 |
10 |
15 |
2 |
25 |
30 |
40 |
50 |
60 |
|
Rated Output Currency(A) |
3.1 |
4.5 |
7 |
10.5 |
16 |
24 |
32 |
45 |
60 |
72 |
85 |
110 |
140 |
170 |
|
Inverter Capacity (KVA) |
1.2 |
1.4 |
2.7 |
4 |
6 |
10 |
13.7 |
17.9 |
22 |
27.5 |
33 |
43 |
52 |
65 |
|
Line Source |
3 phases 220~230V±10% 50/60HZ±5% |
|||||||||||||
|
Max Output Voltage |
3 phases 0~230V |
|||||||||||||
|
Type |
333P5 344P5 |
33301 34401 |
33302 34402 |
33303 34403 |
33305 34405 |
33307 34407 |
33310 34410 |
33315 34415 |
33320 34420 |
33325 34425 |
33330 34430 |
33340 34440 |
33350 34450 |
33360 34460 |
|
Motor Output (KW) |
0.4 |
0.75 |
1.5 |
2.2 |
3.7 |
5.5 |
7.5 |
11 |
15 |
18.5 |
22 |
30 |
37 |
45 |
|
Motor (HP) |
1/2 |
1 |
2 |
3 |
5 |
7.5 |
10 |
15 |
2 |
25 |
30 |
40 |
50 |
60 |
|
Rated Output Currency(A) |
1.5 |
2.3 |
3.8 |
5.2 |
8.8 |
12 |
16 |
24 |
30 |
39 |
45 |
60 |
73 |
85 |
|
Inverter Capacity (KVA) |
1 |
1.7 |
2.9 |
4 |
6.7 |
10.3 |
12.3 |
17.9 |
22 |
28 |
34 |
44 |
53 |
65 |
|
Line Source |
3 phases 380~440V±10% 50/60HZ±5% |
|||||||||||||
|
Max Output Voltage |
3 phases 0~380~460V |
|||||||||||||
|
Control Method |
V/F control Sine Wave Pwm (V/F control) |
|||||||||||||
|
Torque Signal (MAN) |
Man Dco-5v Aut Dco-5v or 0~20mA |
|||||||||||||
|
Accel / Dece Time |
1~150sec |
|||||||||||||
|
Braking Torque |
20%~100%(with optional breaking resistor) |
|||||||||||||
|
Qverload Capacity |
150%Rated output current resistor |
|||||||||||||
|
Oven Voltage |
DC current>410V(power110/220V AC) DC current>810V(power380/440V AC) DCBus voltate exceed |
|||||||||||||
|
Operating Temperature |
-10~40°C/0~90°C No Frost |
|||||||||||||
|
Endurance of Oscillation |
> 1G(9.8ms²) |
|||||||||||||

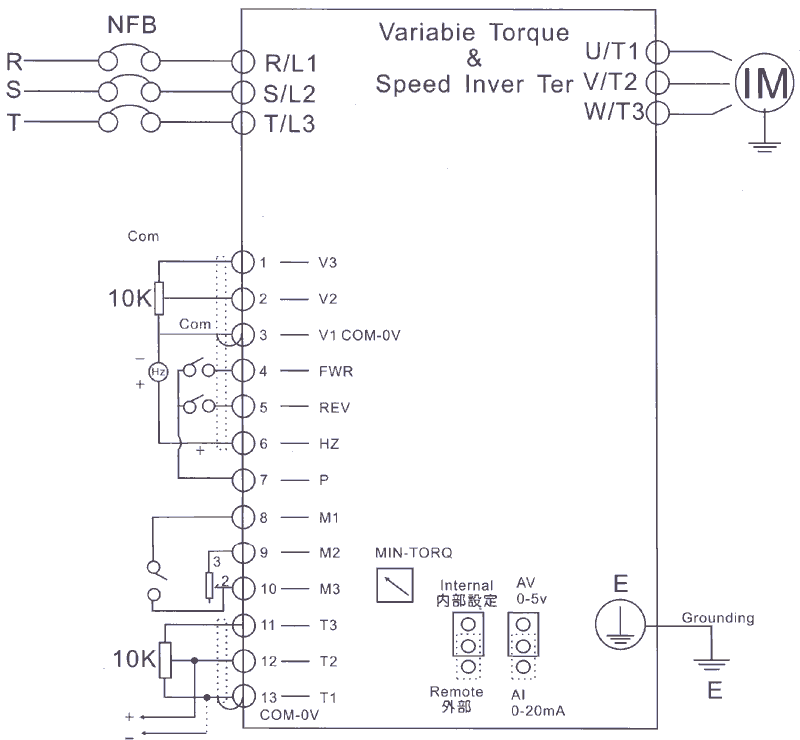

Wiring the Main circuit & Wiring the Control circuit
Note 1: Power plugs in NFB switch or high speed fuse.
Note 2: Single phase power plugs in R/L1, S/L2
Single phase power plugs in R/L1, S/L2. Please don't use electromagnetic switch for the start and stop.
FREQ-SET
Note 3: V3、 V2、 V1(com) 、 FWR、 REV、 HZ、 T3、 T2、 T1、 P、 M1、 M2、 M3 must be covered separated string.
While stopping, using low-twist setting can prevent the stuff from losing. (Converter must be "on" )
Manual DC 0~20mA DC 0~5V
TORQ-SET
( Auto ) Signal
Note 4: Motor of U/T1、 V/T2、 W/T3 can't be connected to the switch. It must be connected to the motor string.
Do not in stall a contactor between the Inverter and the Motor
3 Phase Induction Motor
(Forced cooling Fan)
TECO, Tatung or other brands all can use transistor motor.
Caution
V3、 V2、 com.DC 0-10V not separated type
T3、 T2、 com.DC 0-5V(0-20mA)
Voltage Following
ANALOG INPUT 0-10V DC
ANALOG INPUT 0-5V DC & Controls
ART NOT ISOLATED
Note: —Use twisted-pair shielded wires
SOURCE
CONTROL RESISTANCE
OUTPUT ( MOTOR )
Machines of Fitting:
Printing Machinery: Flat Turning Machine, Indentation Turning Machine, Other Tension Control Machines
Paper Machinery: Producing Paper Machine, Separating Machine, Cutting Machine, Corrugated Paper Machine, Pressing Machine, Copying Machine, Glue, Glass Paper, Glue Mould, Aluminum Foil Rollup Machine
Metal Processing Machinery: Pressing Machine, Stretching Machine, Twisting Machine, Rolling Machine, Separating Machine, Winding Machine
Fiber Machinery: Flame Machine, Preparing Machine, Weaving Machine, Core Rollup, Cover Rollup
Rubber: Transportation Belt, Flat Belt, Clothing Rollup
Plastics: Gluing Machine, Plastic Bag Rollup, Leading Machine, Covering Mould Machine, Weaving, Tube Plastic Mould Rollup, Leading
Others: Driver of Roll Field Machine, Load Testing Fitting

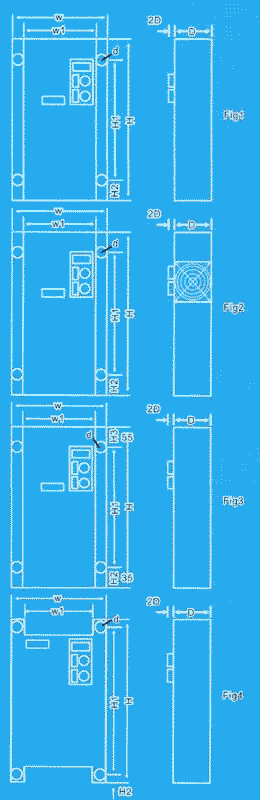

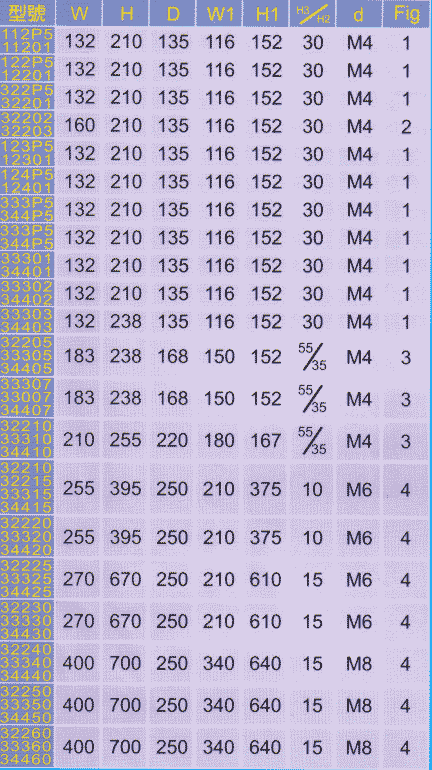

Dimension:
轉矩扭力變頻器
1/2~60HP
無段調整(速度)頻率２０:１
無段調整轉矩扭力２０:1
Variable Speeds Variable Torque
FEVF INVERTER AC MOTOR CONTROL
特性:
轉矩(扭力)變頻器＋普通三相感應馬達或變頻馬達。
轉矩張力可手動調整或配合張力控制器信號DC0~10V，DC0~5V或０~20mA作自動控制。
可達到轉矩、捲取、張力與拉力控制功能。
最低扭力設定、防止鬆脫。
