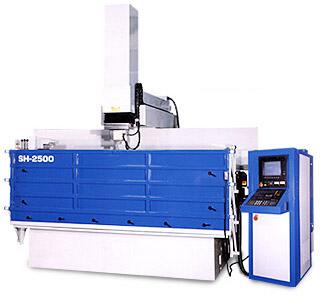

SH SERIES
ELECTRICAL DISCHARGE MACHINES
MODEL: 400/500/700/1000/1300/2100/2500

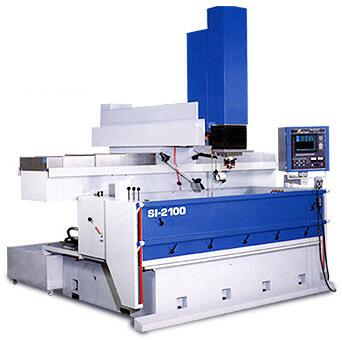

SI SERIES
ELECTRICAL DISCHARGE MACHINES
MODEL: 400/500/700/1000/1300/2100/2500

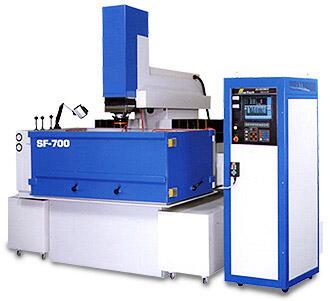

SF series
ELECTRICAL DISCHARGE MACHINES
MODEL: 400/500/700/1000/1300/2100/2500

SH/SI/SF Series SPECIFICATIONS:
Model

(Unit)
400 500 700 1000
Work Table

mm
650x350 800x400 1000x600 1200x800
Maximum oil depth Work Tank (XxYxZ)

mm
1050x670x450 1200x700x500 1500x1020x650 1845x1100x650
Table Longitudinal Travels(X)

mm
350 450 700 1000
Table Transversal Travels(X)

mm
300 400 500 600
Z Axis
Quill Travel

mm
200/350 200/350 400 400/600
Worktable "T" Slot (# x P)

mm
4x75 4x75 4x130 6x130
Max Distance Between The
Table Surface And Quill

mm
450 470 920/1170/1320 900/1050/1300
Maximum Electrode Weight

kgs
150 200 300 300
Maximum WorkPiece Weight

kgs
500 600 4000 5000
Machine Weight

kgs
1800 2300 5500 7000

Model

(Unit)
1300 2000 2100 2500
Work Table

mm
1400x900 2000x1000 2000x1000 2500x1000
Maximum oil depth Work Tank (XxYxZ)

mm
2080x1270x700 2900x1500x700 2900x1500x700 3400x1555x700
Table Longitudinal Travels(X)

mm
1300 2000 2100 2500
Table Transversal Travels(X)

mm
700 1000 1000 1000
Z Axis
Quill Travel

mm
450/600 600 600 600
Worktable "T" Slot (# x P)

mm
6x145 6x147 6x147 6x147
Max Distance Between The
Table Surface And Quill

mm
1130/1280/1430 1250 1350 1500
Maximum Electrode Weight

kgs
500 500 500 500
Maximum WorkPiece Weight

kgs
5000 7000 9000 10000
Machine Weight

kgs
8400 12300 13500 18200
