Full Auto Vacuum Forming Machine

All Sets of Vacuum Blister Plastic Shaping Equipments for Factory

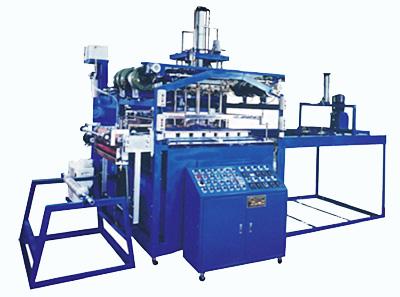

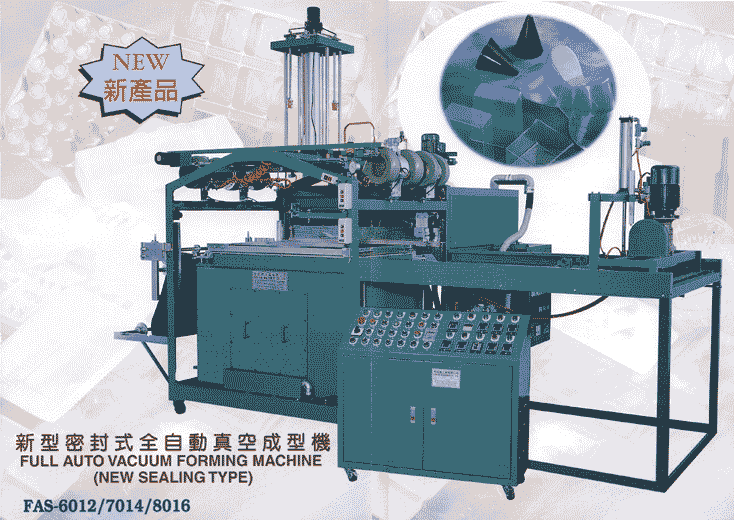

Breakthrough the conventional Vacuum Forming Machine for which happened the film sinking, during in heating process and the film be not sinked. Especially the new Forming Products Surface will be bright & Glossy.	FA-6012 Full Auto Vacuum Forming Machine

1)The middle frame film width be adjusted by electrical adjustment and also can be adjusted finely, Since, the replacing time of middle frame will shorten, the within 5cm concave moulding will not added the adjacent frame, advancing the working efficiency.

2)The cold water moulding & upper moulding are adopted electrical elevating which can be assured the operator safety and the moulding can be reached ideal position quickly and reduced the replacing time.

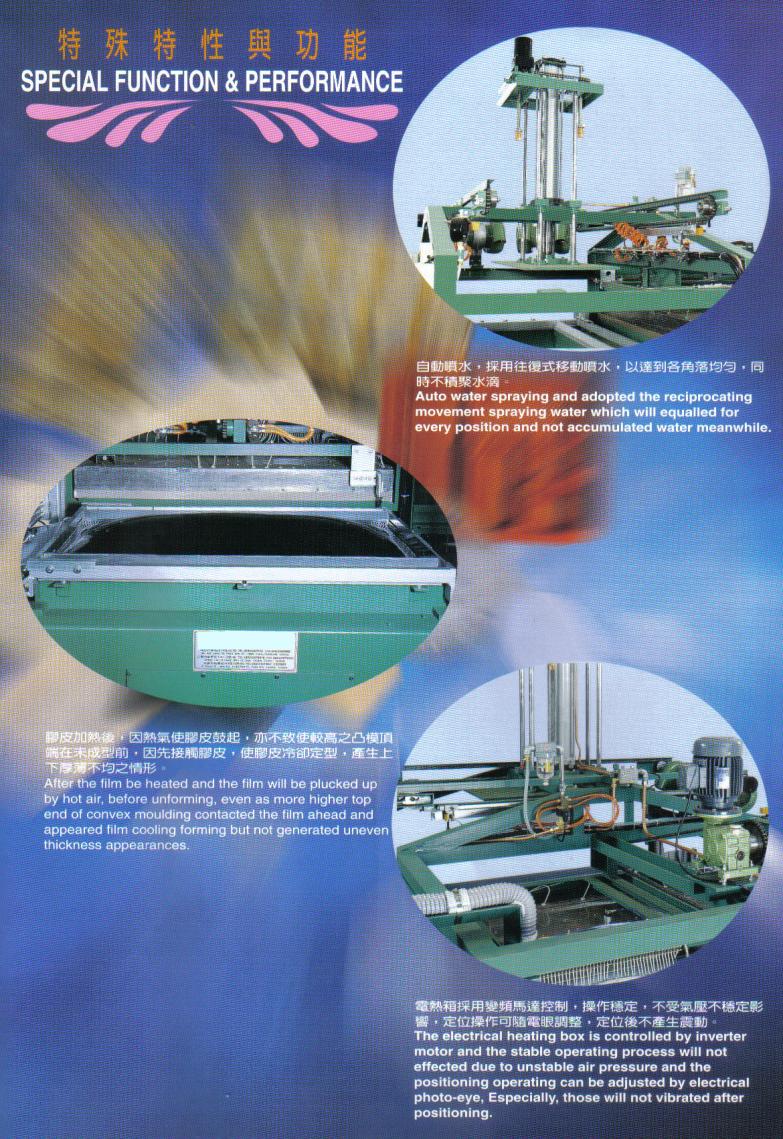

3)Auto water spraying and adopted the reciprocating movement spraying water which will equalled for every position nd not accumulated water meanwhile.

4)The auto draw film is adopted three powerful responding clamping kit, stable & rapid of machinery running and the ill-products will be reduced mostly.

5)The electrical heating box is controlled by inverter motor and the stable operating process will not effected due to unstable air pressure and the positioning operating can be adjusted by electrical photo-eye, will not vibrated after positioning.

6)The feeding is adopted motor driven rubber roller unloading and the unloading length can be adjusted. (can be installed the silicon tunnel for dipping silicon cement).

7)Suitable for PVC, PS, PP, PET, ABS, OPS etc., thermoplastic material.

8) The film drawing motor is controlled by inverter, furthermore, the forward, backward & speed reducing etc., be adjusted separately, stable & rapid of actions, Since, the production rate will be increased.

9) The heat forming is adopted sealing style and anyhow material, thickness film in heating process, those will not generated sinking condition. Especially, those film will not happened stretching appearances and the surface of forming products will be bright & glossy.

10) After the film be heated and the film will be pluck up by hot air, before un-forming, even as more higher top end of convex moulding contacted the film ahead and appeared film cooling forming but not generated uneven thickness appearances.
