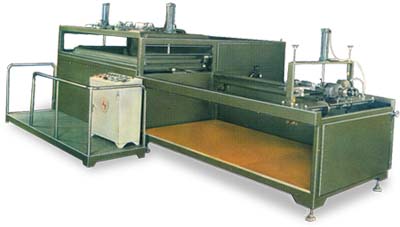

FULL AUTOMATIC VACUUM FORMING MACHINE FOR MAKING PLASTIC STEEL CARVED DOOR
| Model | VF-1020AS Single Head Full Automatic |
VF-1020AD Double Heads Full Automatic |
| Film Width Max. Forming | 1020mm | 1220mm |
| Max. Forming Area W*L | 940*2160 | 1140*2160 |
| Vacuum Pump | 5HP | 7 1/2HP |
| Air Compressor | 5HP | 7 1/2HP |
| Heater | 32KW | 32KW |
| For Cooling | 1/2HP*6 | 1/2HP*12 |
| Max. Machine Size L*W*H |
3150*5820*2100mm L:4000m/m |
4580*5820*2100mm |
FEATURES OF APPLICATION:
- This machine specialize in making art carved entry door of three dimensional relief picture pattern, plastic steel ceiling and wall board.
- The carved door, wall board whose decorative design is clear and noble are made with ABS, PVC material through vacuum pressure. They are against grinding, pressure and heat. It will not lose colors so it is suitable and excellent decorative material for doors and wall of hotel, restaurant, high class resident area and villa.
- The machine adapts automatic operation including from vacuum pressure, forming, spraying glue, drying to vacuum pasting. It is not only easy to operate, but also speedy.
