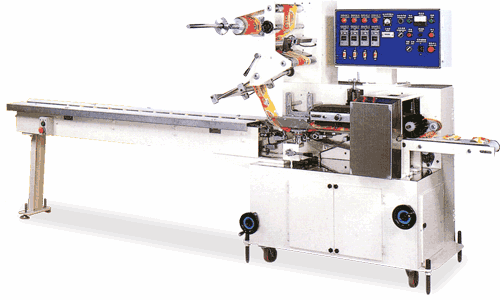

AUTO/BAG FORMING/FILLING/SEALING & PACKING MACHINE
APPLICATION FIELD:
This machine is suitable for packing instant noodle, biscuit, ice cream, ice
candy, chewing-gum, chocolate, handkerchief, napkin, dry battery cell, fruit
parfait, bread, pine apple cake, general cake, of bar and various round,
square, or rectangle, etc. profile solid products.
SUITABLE PACKING MATERIAL:
The machine is suitable for PP, CPP, KOP, PET, Aluminum Foil & Back
Laminated Paper etc.
OPTIONAL ACCESSORIES:
1. DATE PRINTER (MFG, DATE, EXPIRY DATE ECT.,)
2. 3 SIDE SEALING STYLE PERFORMANCE
¡@
SPECIFICATIONS:
| MODEL | CS-800 | CS-600 |
| PACKING STYLE | Horizontal pillow style | |
| PACKING SIZE | L80-400*W10-180*H10-100MM | L80-300*W10-100*H10-60MM |
| PACKING CAPACITY |
30-200 Bags/min
By the dimensions of packing commodity |
|
| MAIN MOTOR | 2HP/220V.50/60HZ | 1HP/220V.50/60HZ |
| LONGITUDINAL HEATER | 400W*2 | 400W*2 |
| CROSS HEATER | 300W*4 | 300W*4 |
| MACHINE SIZE | 4200*900*1700mm | 3400*800*1600mm |
| MEASUREMENT | 2400*1330*900mm | 2200*850*1650mm |
| N.W/G.W. | 1200kgs/1350kgs | 800kgs/1000kgs |
| ¡°We reserve the right to modify the specifications which subjected to change, without prior notice. | ||
