| AUTOMATIC/SEAL
& SHRINK PACKING MACHINE-SLEEVE TYPE
FEATURES:

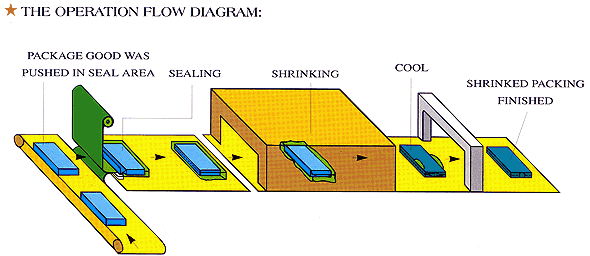

- This machine is an Automatic Packing Machine in
processes, automatic conveyance, advance, seal and heat shrinkage.
- IT is provided for "Plastic Film" Packing
purpose, including film packing of individual item and outside case.
- This Auto PE/PVC Film Packing Machine is designed
for film packing as well as shrinking oversize, articles of complicated
shape, counted collectively or packed with case (box).
- The conveyance method of th
 is
machine, designed upon the shape and quality of packed item and the
requirement, is advanced in concerned straight line and 90¢X turning.
- This machine is suitable for either independent
use or to be utilized in automated production line.
¡@
|

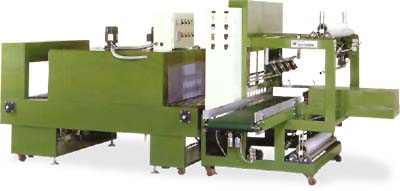

CS-8100 |
  |
|

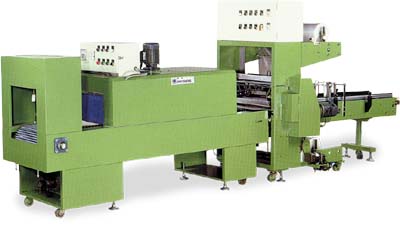

CS-8100M |
  |
|

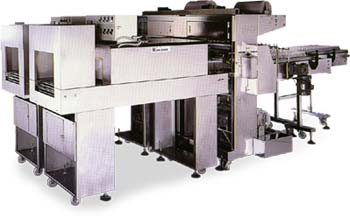

CS-8100H |
  |
HOT SHRINK
TUNNEL-SPECIFICATIONS
MODEL
SPEC |
EST-600/300 |
EST-80/300 |
EST-1000-400 |
EST-1200/400 |
|
MECHANICAL DIMENSION |
L:2500mm |
L:2500mm |
L:2500mm |
L:2500mm |
|
W:10500mm |
W:1250mm |
W:1450mm |
W:1650mm |
|
H:1450mm |
H:1450mm |
H:1550mm |
H:1550mm |
|
SHRINK TUNNEL DIMENSION |
W:10500mm |
W:12500mm |
W:14500mm |
W:16500mm |
|
W:660mm |
W:800mm |
W:1000mm |
W:1200mm |
|
H:300mm |
H:300mm |
H:400mm |
H:400mm |
|
ELECTRIC HEATING |
15KW |
18KW |
21KW |
24KW |
|
ROWER |
220V 30 OR AS CUSTOMER¡¦S
SPECIFIED |
IF YOUR GOODS DIMENSION IS BEYOND ABOVE STANDARD
SPECIFICATIONS, WS CAN ALSO DESIGN & MANUFACTURE RESPECTIVELY.
¡@
AUTOMATIC SEAL PACKING
MACHINE-SLEEVE TYPE SPECIFICATIONS
| MODEL
SPEC |
CS-8103 |
CS-8104 |
CS-8124 |
CS-8126 |
|
MECHANICAL DIMENSION |
L:2250mm |
L:2250mm |
L:2250mm |
L:2250mm |
|
W:1650mm |
W:1850mm |
W:1850mm |
W:2050mm |
|
H:1800mm |
H:1800mm |
H:1800mm |
H:1800mm |
|
CALIBER OF SEAL SEAT |
L:1000mm |
L:1000mm |
L:1200mm |
L:1 H:300mm |
|
H:300mm |
H:300mm |
H:300mm |
H:300mm |
| CONVEYOR
CAPACITY |
300mm |
400mm |
400mm |
600mm |
| ³Ì¤j¥]¸Ë¤Ø¤o
MAX. PACKAGE DIMENSION |
L:800mm |
L:800mm |
L:1000mm |
L:1000mm |
|
W:300mm |
W:400mm |
W:400mm |
W:600mm |
|
H:250mm |
H:250mm |
H:250mm |
H:350mm |
| PACKING
CAPACITY |
10~15 SEC/PC |
| POWER |
220V 30 OR AS CUSTOMER¡¦S
SPECIFIED |
| USING AIR
COMPRESSION |
6kg/cm2*300/min
(equal to 3HP air compressor) |
IF YOUR GOODS DIMENSION IS BEYOND ABOVE STANDARD
SPECIFICATIONS, WS CAN ALSO DESIGN & MANUFACTURE RESPECTIVELY. |
