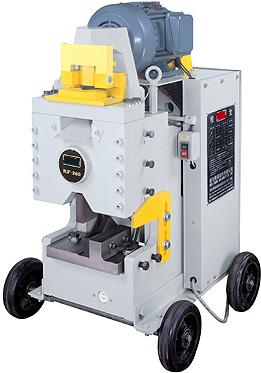

Universal Hole Punching & Cutting Machine

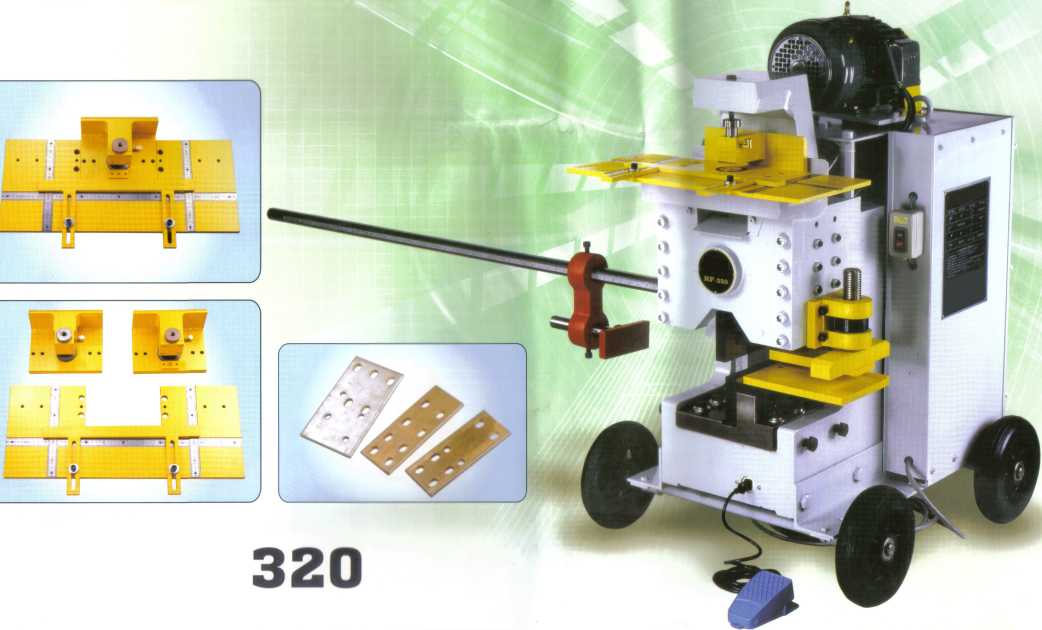

CS260        CS320

Split Unit Punching & Cutting Machine for Copper Plate/Bar or Aluminum Plate

¡@

¡@


¡@

Description
Description CS260 CS320
Increasing Pressure 30ton 50ton
Stroke 50m/m 40m/m
Motor 1.5Kw x 1.5P 2.2Kw x 3P
Size (HxWxL) 1050x580x660 m/m 1300x710x700m/m
Weight 500kg 950kg


¡@

Working Capacity
Standard Accessories: 1,2,3,4,8

Optional Accessories/Special Accessories: 5,6,7

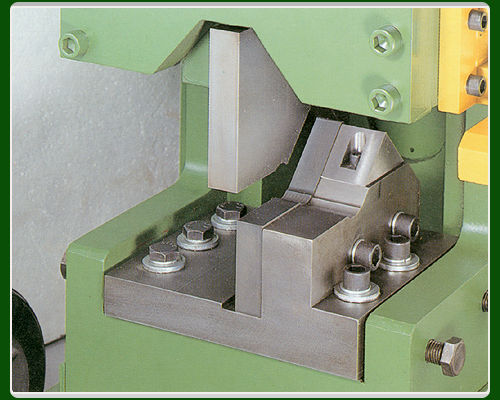

 Square Cut  Angle Cut
 Bar Cut  Flat Cut
 Punching Ellipse & Rectangle Hole  Punching Circle Hole

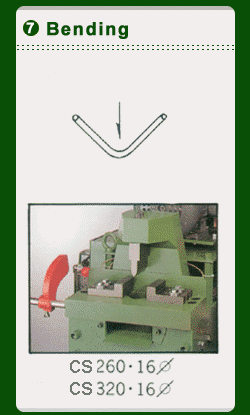

Bending  Notching

Manufacturer of industrial punching & cutting machinery, such as universal hole punching & cutting machines, auto steel rod cutting machines, rolled steel wire cutting machines, shaped steel hole punching machinery, cutting straightening machines, etc.

Main Products: industrial punching & cutting machinery ( machines, machineries)- universal hole punching & cutting machines, auto steel rod cutting machinery, rolled steel wire cutting machineries, shaped steel hole punching machinery, cutting straightening machines, round iron cutting machinery, omnipotent punching machines, stick stainless auto cutting machinery, style stainless auto cutting machinery.
