PUNCHING SHEARING NOTCHING BENDING METAL FORMING MACHINE

¡@

¡@

The double cylinder "S/SD" series, ranging from 60 tons to 165 tons of punching force, are in the tradition of well engineered "PUNCHING SHEARING NOTCHING BENDING METAL FORMING MACHINE" built for high power, quality, and reliability. These "PUNCHING SHEARING NOTCHING BENDING METAL FORMING MACHINES" have two control foot paddles, and separate operations can be safely performed simultaneously. The low pressure setting for tool change provides maximum operation safety. The long punching cylinder stroke and deep throat enable mounting a wide range of special equipment. A 2-hole overhang die holder and a 2-piece gauging table are provided as standard equipment.

¡@

¡@

¡@

¡@

WORK STATIONS

¡@

PUNCHING STATION

¡@

  1. A full range of punches and dies are available for various punching needs.

  2. Easily changeable punches and dies for fast tool change.

  3. Thoughtfully designed stripper for visibility, safety and ease of use.

  4. Standard gauging table or optional multi-stop gauging table or optional duplicating gauging table.

  5. Optional hydraulic stripper is available on double cylinder "PUNCHING SHEARING NOTCHING BENDING METAL FORMING MACHINES".

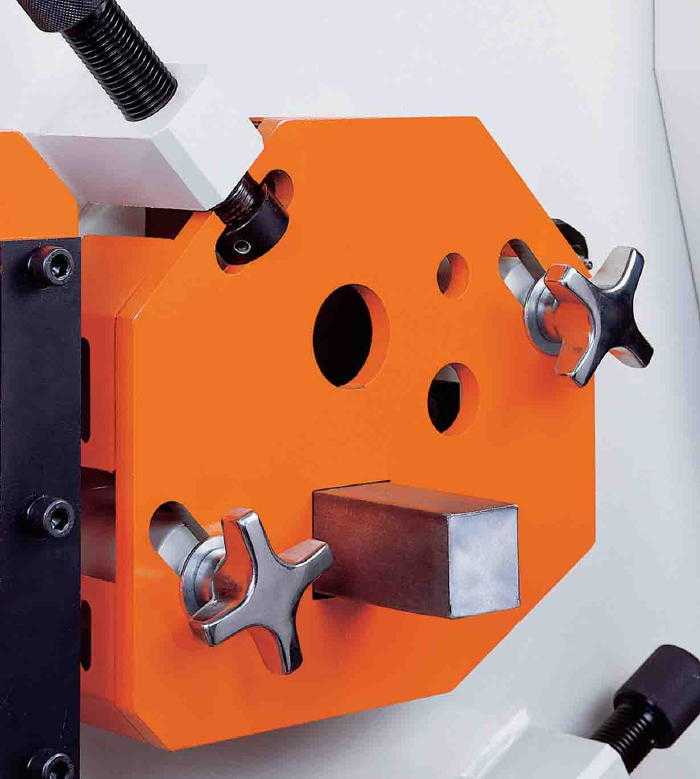

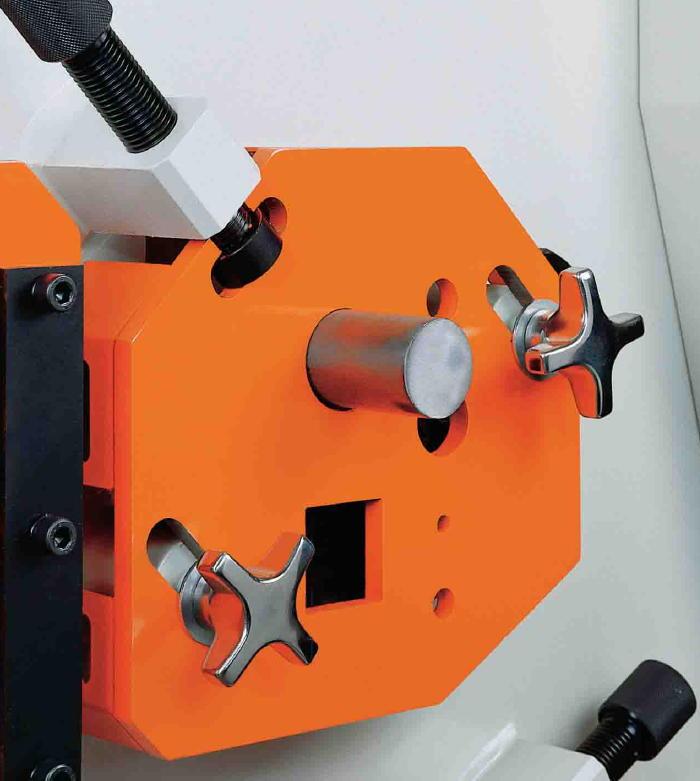

BAR SHEARING STATION

  1. One hold-down for various sizes of square bar shearing and round bar shearing.

  2. Optional channel shear tooling is available for most models. (See specification chart for details)

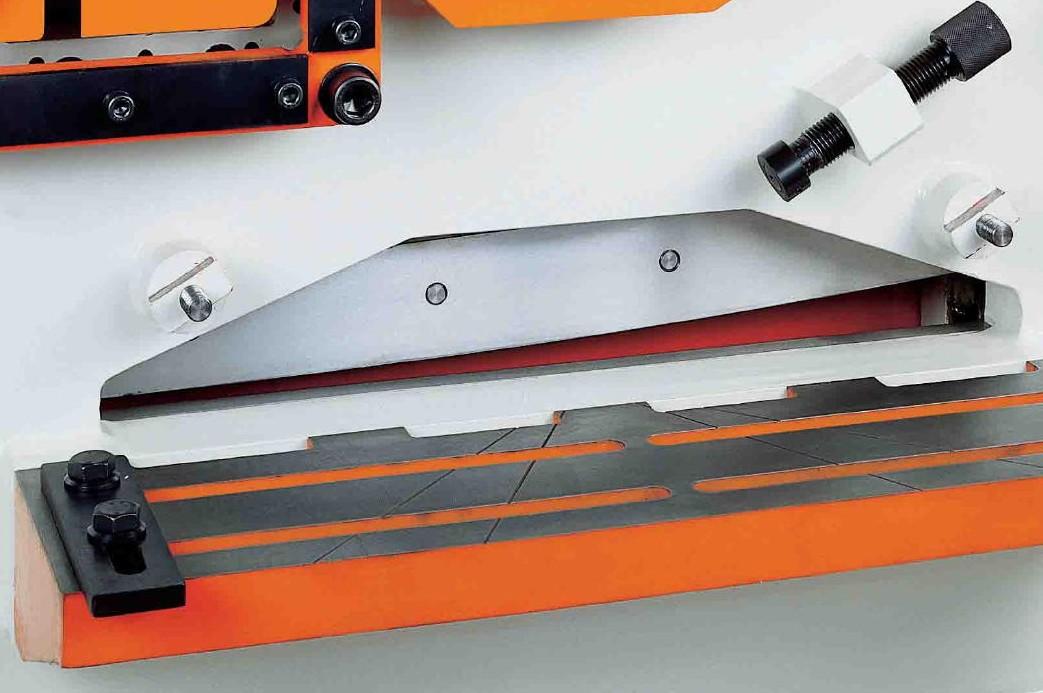

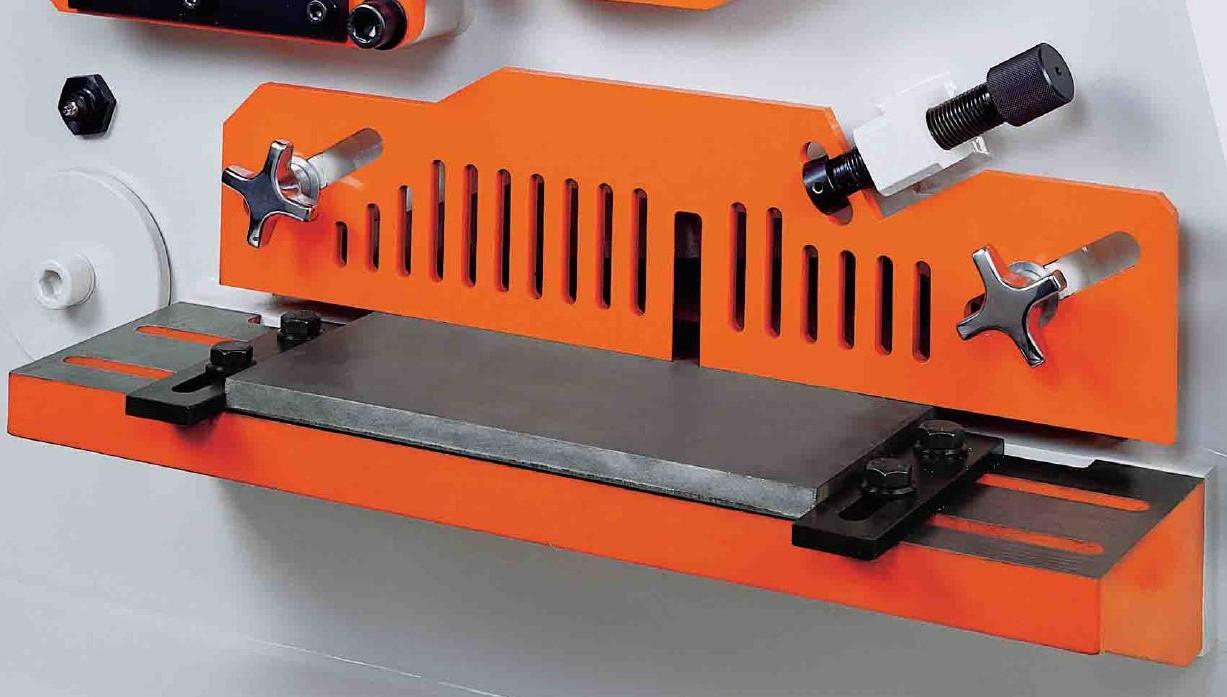

FLAT BAR SHEARING STATION

  1. Special curved upper blade to give a clean shear with minimum distortion.

  2. Lower blade has four usable cutting edges.

  3. Variable degree miter-cutting on angle flange.

  4. Easily adjustable hold-down.

  5. Support table with guides for accurate positioning.

  6. Optional hydraulic hold-down is available on "PUNCHING SHEARING NOTCHING BENDING METAL FORMING MACHINES".

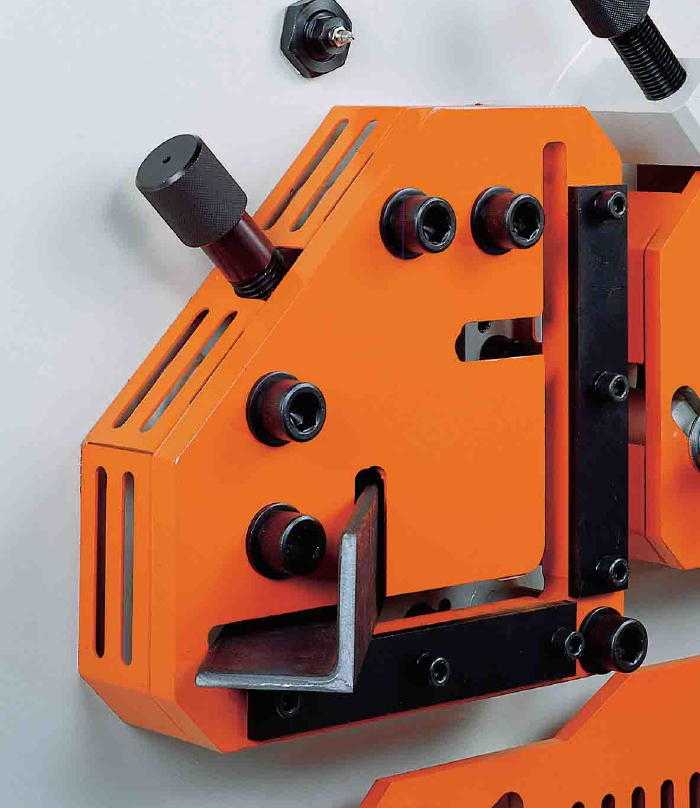

ANGLE SHEARING STATION

  1. Single shear with no material loss and minimal deformity.

  2. 45 degree miter-cut is easy and clean.

  3. Featuring blades with four usable cutting edges.

NOTCHING STATION (optional on CF-45M)

  1. Ideal for notching on flat bars and angles.

  2. Feature electrically interlocked safety guard for maximum safety and visibility.

  3. Gauging table with stops for precise positioning.

  4. Optional Vee-Notcher is also available.

¡@

¡@

MODEL

CF-60S

CF-80S

CF-100S

CF-125S

¡@



CF-60SD

CF-80SD

CF-100SD

CF-125SD

CF-165SD

PUNCHING

Punching Pressure

60 Ton

80 Ton

100 Ton

125 Ton

165 Ton

Punch Capacity

ø22 x 20

ø26 x 22

ø28 x 26

ø33 x 27

ø37 x 32

(Diameter x Thickness)

ø50 x 9

ø50 x 12

ø50 x 15

ø50 x 18

ø50 x 24

Throat Depth S:

310

310

310

310

---

Throat Depth SD:

510

510

510

510

510

Channel Flange Punch (Height)

180

180

180

180

180

Max. Stroke Length

100

100

100

100

100

Cycles / Min.
(20mm stroke)

30

29

28

28

29

Working Height Up to Die

1010

1050

1050

1050

1050

FLAT SHEARING

Flat Bar Shearing

350 x 15

460 x 15

610 x 16

610 x 18

760 x 20

(Width x Thickness)

240 x 20

300 x 20

400 x 20

400 x 25

400 x 30

Blade Length

360

465

620

620

770

Angle Flange Trim

100

100

100

100

120

Working Height

910

926

964

920

920

ANGLE SHEARING

At 90o shearing

130 x 130 x 13

152 x 152 x 13

152 x 152 x 15

152 x 152 x 18

205 x 205 x 20

At 45o Miter shearing

65 x 65 x 8

80 x 80 x v10

80 x 80 x 10

80 x 80 x 10

80 x 80 x 10

Working Height

1115

1165

1225

1185

1185

BAR SHEARING

Round Bar Shear

ø40

ø45

ø45

ø50

ø60

Square Bar Shear

38 x 38

45 x 45

45 x 45

50 x 50

60 x 60

Channel Shear

130*

152*

152*

180*

203*

I Beams Shear

130*

152*

152*

180*

203*

Working Height

1220

1270

1340

1310

1370

NOTCHING

Rectangular Notcher (WxDxT)

50.8 x 90 x 9

50.8 x 90 x 12

63.5 x 90 x 12

63.5 x 90 x 13

63.5 x 90 x16

Vee-Notcher
(Side x Side x T)

90 x 90 x 10*

90 x 90 x12*

105 x 105 x 12*

105 x 105 x 13*

105 x 105 x 16*

Large V-Notcher
(Side x Side x T)

145 x 145 x 8*

145 x145 x 10*

145 x 145 x 12*

145 x 145 x 13*

145 x 145 x 13*

Working Height

910

926

964

920

920

SPECIAL TOOLING

Single Vee Press Brake
(Wx T)

250 x 15*

250 x 15*

250 x 20*

250 x 20*

250x 20*

Multi-Vee Press Brake
(W x T)

500 x 5*

500 x 5*

700 x5*

700 x 5*

700 x 5*

Angle Bending

102 x 6*

102 x 8*

102 x 13*

102 x 13*

102 x 13*

Pipe Notching

ø114*

ø114*

ø114*

ø114*

ø114*

OTHER

Electric Power

7.5 HP

10 HP

10 HP

15 HP

20 HP

Net Weight (Apr.) S:

1800 kg

2180 kg

2950 kg

3340 kg

---

Net Weight (Apr.) SD:

2200 kg

2650 kg

3450 kg

3950 kg

4950 kg

Gross Weight (Apr.) S:

1950 kg

2360 kg

3180 kg

3590 kg

---

Gross Weight (Apr.) SD:

2380 kg

2880 kg

3700 kg

4220 kg

5250 kg

Machine Dimension (Apr.) S:

1710x770x1690

1840x820x1730

2110x820x1800

2180x890x1840

---

Machine Dimension (Apr.) SD:

2080x770x1690

2220x820x1730

2470x820x1800

2480x890x1840

2720x890x2000

Packing Dimension (Apr.) S:

1980x930x1970

2110x980x2010

2380x980x2080

2450x1050x2120

---

Packing Dimension (Apr.) SD:

2350x930x1970

2490x980x1770

2740x980x2080

2750x1050x2120

2990x1050x2280

Unit: mm

* : Optional Tooling

Note: Based on material strength of 45kg/mm2 tensile.
Design and specifications subject to change without notice.

¡@

¡@

¡@

Optional tooling for PUNCHING SHEARING NOTCHING BENDING METAL FORMING MACHINE:

For PUNCHING STATION

Urethane spring stripper for minimal deformation.
¡@

Pipe notcher.

Single Vee press brake.

Multi-vee press brake.
¡@

Large Vee notcher.
¡@

Multi-stop gauge table.

¡@

¡@

Duplicating table with hydraulic stripper and hydraulic clamping.

¡@

¡@

¡@

For BAR SHEARING STATION

¡@

¡@

Channel shear or special profile shear.
¡@

¡@

¡@

¡@

¡@

¡@

For FLAT BAR SHEARING STATION

¡@

¡@

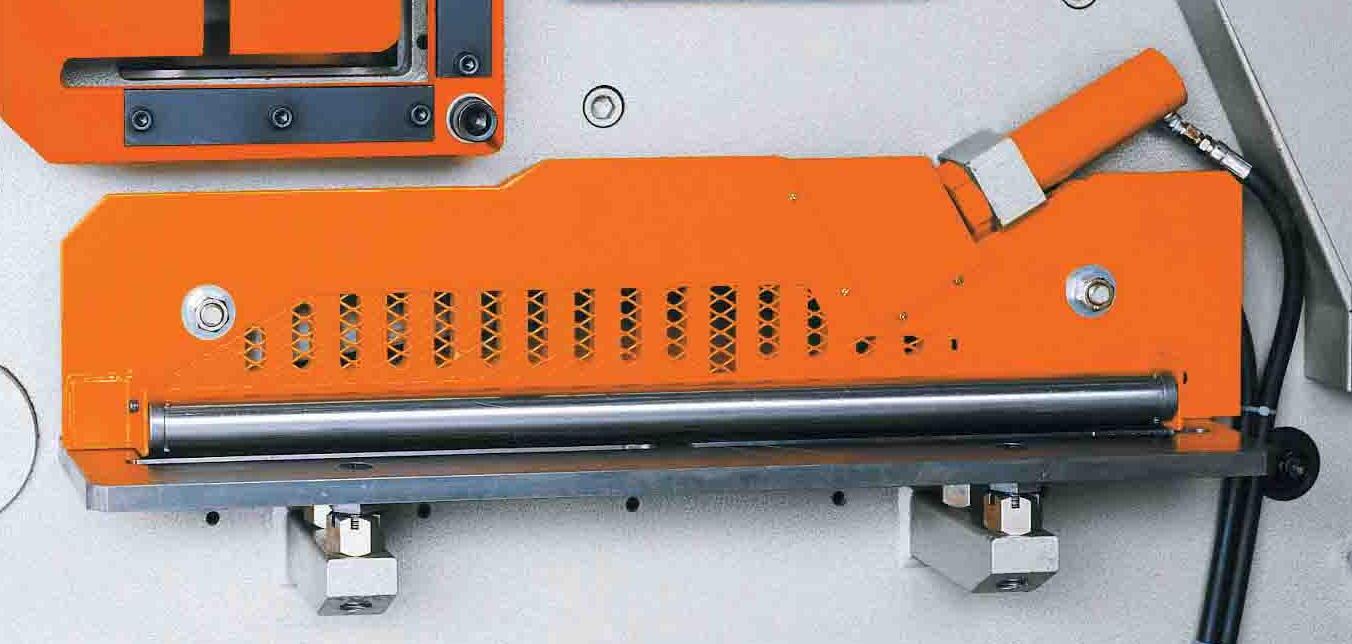

Hydraulic holddown for flat shear.
¡@

¡@

¡@

¡@

¡@

¡@

For NOTCHING STATION

¡@

¡@

Vee-Notcher
