UV
LAMP: |
|
Unit
is made out of stainless steel and convenient for consumers to wash
and maintain. It is also
easy to replace the UV lamp under no
circumstances of affecting
the flow. In addition, in normal situation the
LED indicator irradiates,
while out of order the alarm will sound a bit to
guarantee a double-check on
your drinking water. And the highly
efficient UV lamps and

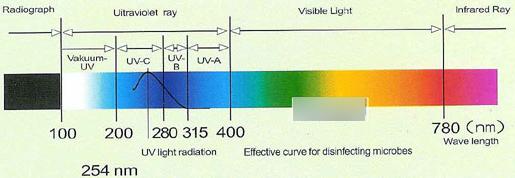

quartz sleeves enhance the penetration power of
ultraviolet rays and help
reduce bacteria and viruses up to 99.9%. |
¡@

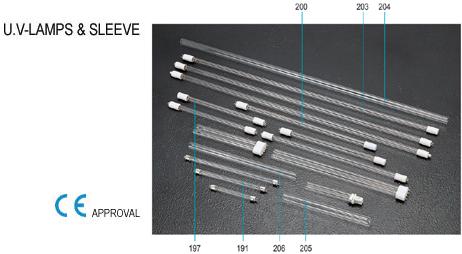

-0311 Catalog U.V-Lamps & Sleeve
Accesseries-
¡@
|
ITEM |
DESCRIPTION |
IN-OUT LET |
REMARK |
|

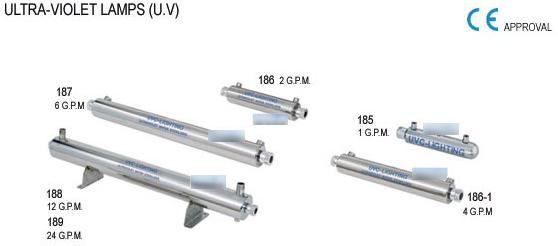

185 |
U.V. Lamp Complete Set, 1 GPM ¢64 x L300 (mm) |
1/4" |
x |
|
186 |
U.V. Lamp Complete Set, 2 GPM ¢64 x L340 (mm) |
1/4" |
x |
|
186-1 |
U.V. Lamp Complete Set, 4 GPM ¢64 x L512 (mm)
|
1/2" |
x |
|
187 |
U.V. Lamp Complete Set, 6 GPM ¢64 x L680 (mm) |
1/2" |
x |
|
188 |
U.V. Lamp Complete Set, 12 GPM ¢83 x L900 (mm) |
1/2" |
x |
|
189 |
U.V. Lamp Complete Set, 24 GPM ¢100 x L900 (mm) |
1" |
x |
|
191 |
U.V. Lamp,GP610, 6W OD:18mm L:225mm |
x |
For 1GPM |
|
197 |
U.V. Lamp, D-287-T5 14W OD:15mm L:287mm |
x |
For 2GPM |
|
200 |
U. V. Lamp, D450-T5 24W OD:15mm L:450mm |
x |
For 4GPM |
|
200-1 |
U.V. Lamp, B842-T5 32W OD:15mm L:645mm |
x |
For 6GPM |
|
203 |
U.V. Lamp, D842-T5 39W OD:15mm L:842mm |
x |
For 12GPM, 24GPM |
|
204 |
Q Sleeve, Double Outlets, SQ230895 OD:23mm L:895mm |
x |
For 12GPM, 24GPM |
|
205 |
Q Sleeve, Double Outlets, SQ230330 OD:23mm L:240mm |
x |
For 1GPM |
|
206 |
Q Sleeve, Double Outlets, SQ230330 OD:23mm L:330mm |
x |
For 2GPM |
|
206-3 |
Q Sleeve, Double Outlets, SQ230500 OD:23mm L:500mm |
x |
For 4GPM |
|
206-4 |
Q Sleeve, Double Outlets, SQ230670 OD:23mm L:670mm |
x |
For 6GPM |
Remark : S = 2 pins on both side D = 4 pins
on single side B = 1 pins on single side |
