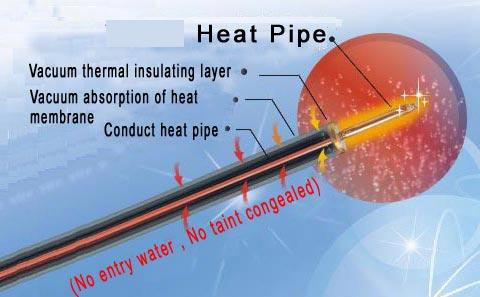

No Taint Congealed
No leakage or taint will congeal inside the tubes¡C
High Heat
The heat collected by the heat-collecting tubes if fully applied to heat the water inside the water tank¡C
High Pressure-Resistance(7 kilogram)
It is completely sealed with steel pipe between the water tank and the heat-collecting tubes,
which allows high-pressure resistance directly from the tapping water
system . There is no connection between the heat-collecting tubes and hot water storage tank, which allows
normal operation of the heater even one of the heat-collecting tubes is broken¡C
Anti-frozen
Even in the severe cold condition, the vacuum tubes won't be broken if no water is inside, which allows
normal operation of ther heater¡C
Dividable
The hot water storage tank and the heat collector can be separately used. It's ther best choice for heating
water engineering¡C
Quick Start
The heat energy collected by the vacuum heat-collecting tubes can quickly reach the water tank thru
'heat pipe¡C
High Heat-Transmission Capability
Wherever and whenever there is sunlight, it can be started to transmit heat. The heat transmission of heat transmitting tubes is by phase change, so the heat transmission capability is quite high¡C
Anti-earthquake, the tube is not easily broken, and no leakage
Connected by mechanical type brass sleeves instead of plastic sealing, assures no breakage or leakage¡C
Stable Quality
Advanced welding technology assures stable quality and high conductive efficiency¡C
Suitable for island climate
Heat collection with vacuum tube provides excellent heat separation, and keeps heat remain the same even in cold weather¡C

Fitting places¡Gblock¡Bhouse¡Brestaurant¡Bhospital¡Bfactory¡Bfarm¡Bswimming pool¡Bhotel¡Btroops¡C
¡@

¡@

¡@¡@¡@¡@¡@¡@¡@¡@¡@¡@¡@¡@¡@

¡@¡@¡@

¡@




¡@


¡@

Solar water heater system

¡@

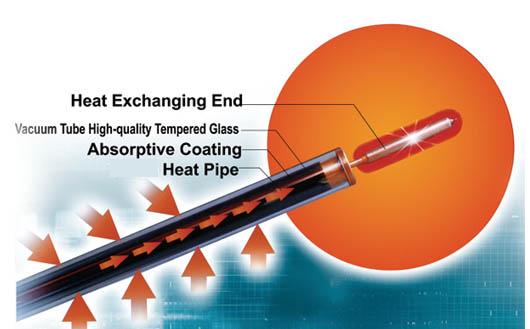

Heat Exchanging End,Absorptive Coating
Heat pipe solar water heater system
Heat pipe solar water heater (thermal) collector is the most efficient system. Efficiency is thousand times of other collecting panel. Heat can be transferred from down to up in few second.
The Company¡¦s heat pipe is in the evacuated tube, which doesn¡¦t have water inside, so we don¡¦t have problem of lime-scale in the tube. Sunlight passing through an outer glass tube heats the absorber tube contained within it. In the evacuated chamber, three target sputtering selective coating are installed above the innner tubes.
Three target sputtering plate (selective coating) and vacuum insulation are the most important parts of an advanced thermal system. A selective coating has high absorption ( low reflection) from solar radiation and low emissivity.
Heat pipe can be used in many situations, for example, solar water heater, heat exchanger and swimming pool. YOUR HOME TECH., LTD is a professional heat pipe solar water heater manufacturer and supplier. We introduced this technology and produced heat pipe in Taiwan.
Thermal collectors are separated two major types;
(1) Passive thermal system
Thermal collector combine with storage tank. Heat pipe generates hot water directly.
Passive solar water heater system doesn¡¦t need any other extra electric device.
Application: Flat roof and garden.
(2) Active thermal system
Active solar water heater use electric pumps, valves and controller to circulate water or other heat-transfer fluids such as anti-freeze through the collectors. It is usually easier to retrofit than passive thermal system. Active solar water heater system installed on the roof of builds and put storage tank in the garage or basement. They don¡¦t need to be installed above or close to the collectors.
Application: residential, condo, resort, apartment, hotel, motel, tour van, industries, etc.

Characteristics
1.Nano-coating
    Our heat pipe uses the Nano-coating technology, which reduces the generation of contact tension and lime-scale.
2.Maintain a high temperate of water
    The storage tank with high-density foam can keep a high temperature of water.
3.Save energy
    The solar water heater uses solar energy to supply hot water every day, which saves the energy from electricity, gas and so on.
4.Qualification
    Our products are certified by Bureau of Energy. Ministry of Economic Affairs.
    And we have gained certification of ISO 9001 & ISO 2000.
5.No limescale
    There is no limescale generated inside of the pipe.
6.Extends life
    The stainless steel storage tank extends the life of water heater.

TECHNICAL PARAMETER OF EVACUATED TUBE

Item
£p47¡Ñ1500
£p58¡Ñ1700
Outer Diameter of tube (mm)
£p47¡Ó0.1
£p58¡Ó0.1
Inner Diameter of tube (mm)
£p32¡Ó0.15
£p43¡Ó0.15
Length of tube (mm)
1500¡Ó0.5%
1700¡Ó0.5%
Vacuum
¡Ù5¡Ñ10-3 Pa
¡Ù5¡Ñ10-3 Pa
Glass Thickness (mm)
1.6¡Ó0.2
1.6¡Ó0.2
Selective coating
AL/AL-ALN¡FCu/Ss-ALN
AL/AL-ALN¡FCu/Ss-ALN
Thermal Expansion
3.3¡Ñ10-6
3.3¡Ñ10-6
Absorptance
¡Ù0.92
¡Ù0.92
Emittance
¡Ø0.08
¡Ø0.08
Stagnation Temperature
¡Ù200¢J
¡Ù200¢J
Material of tube
High Boron Silicon Glass 3.3
High Boron Silicon Glass 3.3
Weight (KG)
1.72
2.4
Hailstone Resistance
30 mm
30 mm
Absorptive Area
0.055 ¢T
0.077 ¢T
Heat Loss
¡Õ0.8 W
¡Õ0.8 W

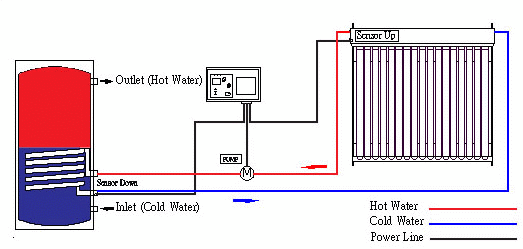

CIRCULATION DRAFT

¡@

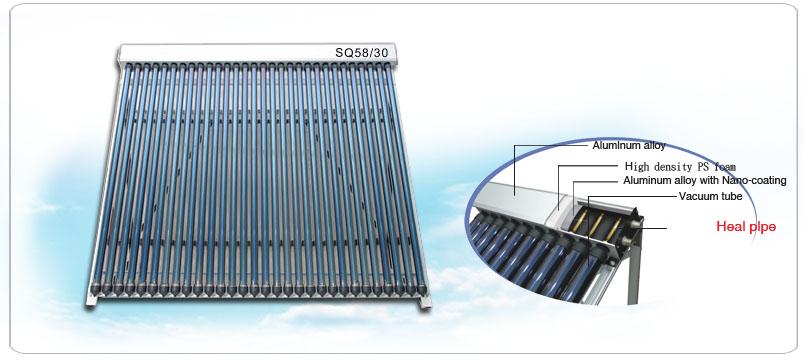

Active thermal system


Active thermal system
Active solar water heater use electric pumps, valves and controller to circulate water or other heat-transfer
fluids such as anti-freeze through the collectors. It is usually easier to retrofit than passive thermal system.
Active solar water heater system installed on the roof of builds and put storage tank in the garage or
basement. They don¡¦t need to be installed above or close to the collectors.
Application: residential, condo, resort, apartment, hotel, motel, tour van, industries, etc.
¡@

TECHNICAL PARAMETER

Collector
Absorber: Heat pipe evacuated tube.
Thermal Absorption: ¡Ù0.86%
Thermal Emissive: ¡Ø0.08%
Coating: AL/AL-ALN; CU/SS-ALN
Material of Heat Pipe: Copper
Manifold
Material: Stainless Steel 304 or Copper
Outer Covering: Aluminum-alloy
Connection: 3/4¡¨ (Inlet & Outlet)
Pressure Resistance: 0.7 Mpa
Testing Pressure: 1 Mpa
Evacuated Tube
Outer Diameter:£r58 mm
Length: 1700mm
Material: High Boron Silicon Glass 3.3
Thickness: 1.6 / 2.0 mm
Frame
Material: Aluminum-alloy
Assemble: Rails and slides to install on the roof or garden.
Antifreeze
Antifreeze liquid refers to local relevant standard
¡@

Conventional Specification ¡VPressurized

Model
Heat pipe Vacuum Tube
Manifold
Bracket Material

Pressure Resistance

(Mpa)

Absorptive Area

(¢T)

Matched water

NO.

(pcs)

Outer Dia.

(mm)

Len.

(mm)

Material
Outer covering
SQ58/20
20
£p58
1700
Stainless Steel 304
Aluminum Alloy
Aluminum Alloy
0.7
1.54
--
SQ58/30
30
£p58
1700
Stainless Steel 304
Aluminum Alloy
Aluminum Alloy
0.7
2.31
--



¡@


Heat Pipe Performance Parameter
¡@
Degree of Vacuum
¡Ù5¡Ñ10-3 Pa
Wind Resistance
30 m/s
Material of tube
High Boron Silicon Glass
Startup Temperature
¡Ø25¢J
Size of Condenser Header (mm)
£p16¡Ñ70
Hailstone Resistance (mm)
30
Coating
AL/AL-ALN¡FCu/Ss-ALN
Weight of single tube (Kg)
2.4
Absorptivity
¡Ù0.86%
Size of single tube (mm)
£p58¡Ñ1700
Emissivity
¡Ø0.08%
Life
¡Ö10 years
Highest Temperature Under Sunshine
250¢J
¡@
¡@


¡@

Passive thermal system

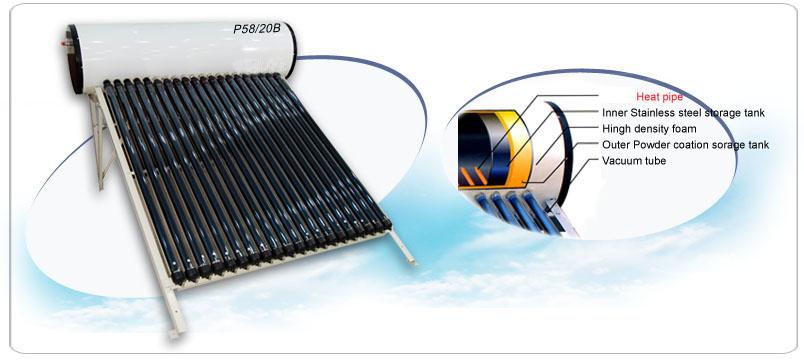

Passive solar water heater
Thermal collector combine with storage tank. Heat pipe generates hot water directly.
Passive solar water heater system doesn¡¦t need any other extra electric device.
Application: Flat roof and garden.


TECHNICAL PARAMETER
Collector
Absorber: Heat pipe evacuated tube.
Thermal Absorption: ¡Ù0.86%
Thermal Emissive: ¡Ø0.08%
Coating: AL/AL-ALN; CU/SS-ALN
Material of Heat Pipe: Copper
Tank
Inner Tank: Stainless Steel 304
Outer Tank: Stainless Steel 304
Insulation Layer: High-Density Polyurethane.
Connection: 3/4¡¨ (Inlet & Outlet)
Pressure Resistance: 0.7 Mpa
Testing Pressure: 1 Mpa
Evacuated Tube
Outer Diameter:£r58 mm
Length: 1700mm
Material: High Boron Silicon Glass 3.3
Thickness: 1.6 / 2.0 mm
Frame
Material: Stainless Steel 304 or Hot Dip Galvanized Coating (Optional)



Technical Parameters of Heat Pipe

¡@
Degree of Vacuum
¡Ù5¡Ñ10-3 Pa
Max. Temperature
250¢J
Glass Material
High Boron Silicon Glass
Wind Resistance
30 m/s
Glass Coating
AL/AL-ALN¡FCu/Ss-ALN
Startup Temperature
¡Ø25¢J
Absorptivity
¡Ù0.86%
Hailstone Resistance
30 mm
Emissivity
¡Ø0.08%
Life
¡Ö15 years




¡@

Conventional Specification ¡VPressurized
Model
P58/15d-12s
P58/20d-12s
P58/25d-12s
Heat Pipe Vacuum tube
NO.(pcs)
15
20
25
Outer Dia (mm)
£p58
£p58
£p58
Len. (mm)
1700
1700
1700
Heat collecting Area (¢T)
1.15
1.54
1.92
Capacity (L)
120
180
200
Inner tank
Material
Stainless Steel 304
Stainless Steel 304
Stainless Steel 304
Thickness (mm)
1.2
Outer tank
Material
Stainless Steel 304
Size (mm)
£p470¡Ñ1270
£p470¡Ñ1700
£p470¡Ñ1700
Pressure Resistance (Mpa)
0.7
Bracket Material
Stainless Steel 304 / Hot Dip Galvanized coating (Optional)
Inlet Diameter
3/4¡¨
Outlet Diameter
3/4¡¨
Insulation Layer
Material
High Density Polyurethane
Thickness (mm)
45~50




























¡@

¡@

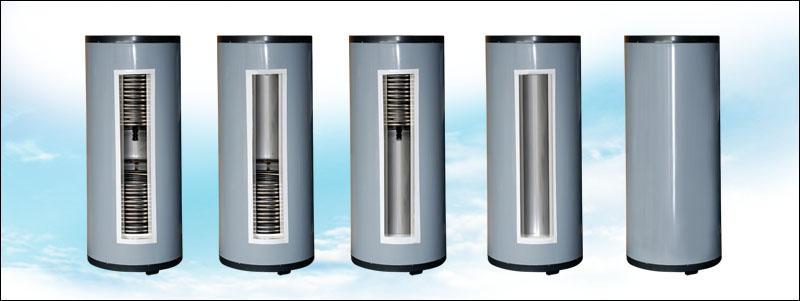

BOILER & TANK

CHARACTERISTICS
¡´Our boilers are following European Standards.
¡´Boilers are manufactured from Stainless Steel 304.
¡´Double testing process for Watertightness.
¡´Long lifespan and absolute safety in operation.
¡´Automatic GTA welding.
¡´All specification of outer tank (mm)
£p400, £p425, £p475, £p620, £p760, £p970, £p1300, £p1420, £p1600, £p1700 etc.
Available with no tube (C0), one (C1), two (C2) and three (C3) tube heat exchangers, suitable for every application.
(e.g. YT 200-C0¡BYT 200-C1¡BYT 200-C2¡BYT 200-C3¡BYTP 200-C0¡BYTP 200-C1¡BYTP 200-C2¡BYTP 200-C3)
¡´Accept a special order as customize
TECHNICAL PARAMETER
Tank
Material: Stainless Steel 304
Welding: Insert Gas Tungsten Arc Welding (GTAW)
Water tightness: Double testing process
Pressure Resistance: 0.7 Mpa
Testing Pressure: 1 Mpa
Insulation Layer
Material: High Density Polyurethane
Thickness: 45-50 mm
Outer Tank (covering)
Material: Stainless Steel 304 or powder coating (Optional)
Heat Exchanger
Type: Coil Exchanger
Exchanger: No tube, one, two and three tube.
Material: Stainless Steel 304
Electric Heating Element: Customized. (2KW~6KW)

Model:
YT Model: Inner tank and outer tank are both Stainless Steel 304
YTP Model: Inner tank is stainless steel 304 and outer tank is powder coating.
¡@

¡@

Model

YT 200

YT 300

YT 400

YT 500

YT 600

Capacity  (L)

200

300

400

500

600

Inner Tank Material

 Stainless Steel 304

Thickness (mm)

2.0

2.0

2.0

2.0

2.0

Outer Tank Material

Stainless Steel 304

Size (mm)

£p620¡Ñ1250

£p670¡Ñ1600

£p670¡Ñ1950

£p670¡Ñ2350

£p670¡Ñ2700

Insulation Layer Material

High Density Polyurethane

Thickness (mm)

45~50

Heat Exchanger

Type

Without Coil (C0), One coil (C1),
Two Coils (C2), Three Coils (C3)

Material

Stainless Steel

Diameter (mm)

19

Len. (m)

18 / 24 / 36 / 42

 Connections

3/4¡¨


¡@























¡@

¡@

¡@

¡@

Model

YTP 200

YTP 300

YTP 400

YTP 500

YTP 600

Capacity  (L)

200

300

400

500

600

Inner Tank Material

 Stainless Steel 304

Thickness (mm)

2.0

2.0

2.0

2.0

2.0

Outer Tank Material

Powder Coating

Size (mm)

£p620¡Ñ1250

£p670¡Ñ1600

£p670¡Ñ1950

£p670¡Ñ2350

£p670¡Ñ2700

Insulation Layer Material

High Density Polyurethane

Thickness (mm)

45~50

Heat Exchanger

Type

Without Coil (C0), One coil (C1),
Two Coils (C2), Three Coils (C3)

Material

Stainless Steel

Diameter (mm)

19

Len. (m)

18 / 24 / 36 / 42

 Connections

3/4¡¨

























¡@

¡@

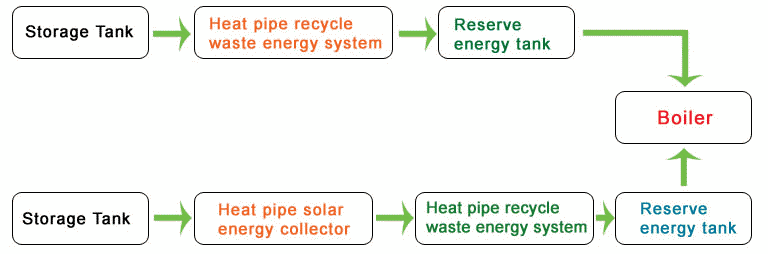

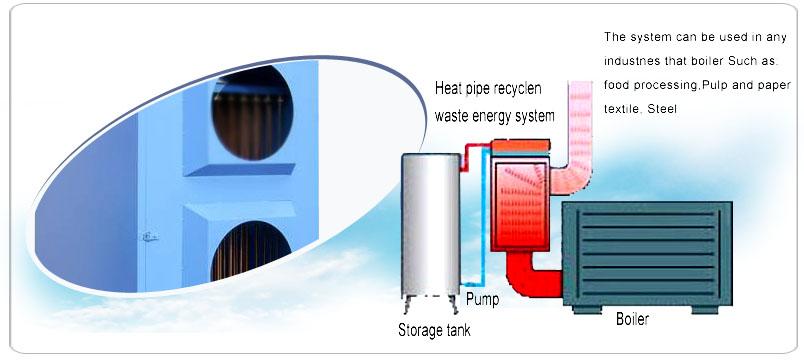

Waste energy recycle system

During the process of manufacture, materials need to be boiling or dry by heat.
Half of energy be used in the process of manufacturer and half of them will become waste energy.
This system can be used in textile, food, steel, leather, paper, plastic
manufacturer and every industry that has waste energy.

¡@

Stainless steel insulation pipe

insulation pipe YUHO

Characteristics:
1. Anti-UV coating:
Prevent pipe from ultraviolet(UV) rays and infrared rays
High density foam is protected by coating and prevent animals from pecking insulation pipe.

2. Insulation foam:
High density insulation foam keep water temperature.

3. 304 Stainless steel pipe:
High quality 304 Stainless steel extend life of product.

4. Easy to install
Insulation pipe can be curved as 180 degree angle and installed in any situation.

Application:

1. Connecting Tank and collector in passive solar thermal system.
(Replacetradition copper pipe)
2. Active solar thermal system.
3. Electric and Gas water heater pipes.






¡@

¡@







Specification of insulation pipe

¡@
Diameter Length
16 mm 20m
18 mm 20m
25.6 mm 30m

¡@

Technical parameter SC and SQ series DOWNLOAD
