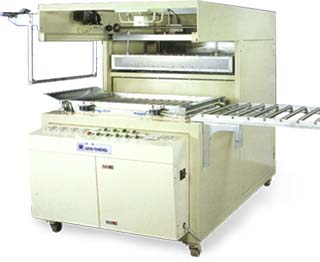

Skin Packaging Machine


SP-660
Vacuum sealing packer, heavy

SPECIAL FEATURES:

  1. The machine ins quite similar to vacuum shaping machine in functions, used to directly pack articles by principle of heat pressing.
  2. Vacuum suction will make the transparent film which has been heated first tightly attached with exquisite-print pasting paperboard.
  3. Its packing effect is same as the package of vacuum blister shell and sealing package is shaped with film tightly and directly attached to the pack article.
  4. Packing areas is big and suitable for Vacuum Sealing Packing with high production.
    ¡@
USES:

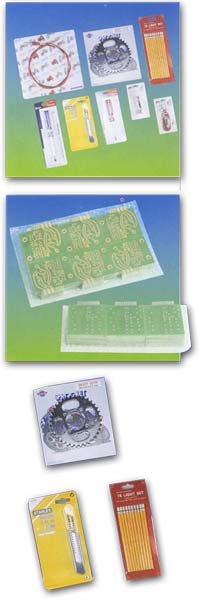

Instead of vacuum shell packer to pack articles such as hardware parts, accessories of automobile, family utensil, toys, ornaments and gifts, etc.

SPECIFICATIONS: (Unit: m/m)

Model No. Width of film Packing area Power Vacuum Pump Electrical heat Compressor
SP-660A 660/610 560¡Ñ900 220V.3 3HP 12KW 4750¡Ñ3000¡Ñ1650
SP-660 660/610 560¡Ñ900 220V.3 3HP 12KW 2500¡Ñ1900¡Ñ1600
SP-655 660/610 560¡Ñ400 220V.1 2HP 4.8KW 1350¡Ñ1000¡Ñ1250
SP-650 660/610 560¡Ñ300 220V.1 1HP 2.6KW 1005¡Ñ935¡Ñ1020




SP-655
Vacuum sealing packer, medium
¡@
SP-650
Vacuum sealing packer, light

¡@

-- Skin Packaging Machine --

¡@
Item No/Type : CS-26, CS-27
Name : Single cycle Automatic Vacuum Forming Machine
¡@
Description : ¡@
Features:
1. With computerized and automatic PLC system it is easy operated and maintained, less out of order.
2. Suitable for the forming of PVC, PSP, PS, PP, PET, PE, plastic material, Fully automated except pulling film by labor.
3. Can cover clear film on the cardboard for skin package.
4. Suitable for hardware, daily necessities, and electronic accessories.


¡@

Model
Specification		 CS-23 CS-25 CS-25A CS-26 CS-27 CS-24A

Forming Area

570x1200x2
mm

570x1200
mm

670x1400
mm

570x1000
mm

570x1000mm

x2Forming Areas

940x2200
mm
Heater Capacity 32KW 32KW 40KW 25KW 25KW 90KW
MAX Forming Depth 200mm 200mm 200mm 200mm 200mm -
Air Compressor 5HP 5HP 7.5HP 3HP 3HP 7.5HP
Vacuum Pump 5HP 5HP 5HP 3HP 3HP 5HP
Machine Size 3100x3400x
2600mm		 2100x3400x
2600mm		 2300x3800x
2600mm		 2000x1700x
1650mm		 3000x1700x
1650mm		 6200x2800x
1600mm
Special specification is available as per customer's requirement.
CS-24A is specialized for producing plastic embossed doors, catalog is available for reference.
