20 Spindles Multi-Axis Pipe / Drum Drilling Machines (x-Type)    CFPDM-12000-20S

Features:

The Pipe is moved by SERVO MOTOR in the forward direction and backward direction.

Rotation the pipe by SERVO MOTOR.

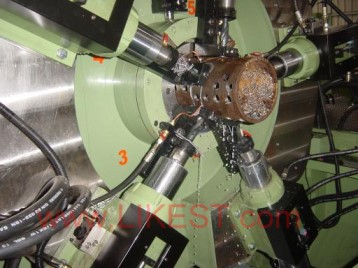

There is 1 set Drilling Base in this machine. 20 sets Drilling Spindles in one Drilling Base. So there are total 20 sets Drilling Spindles in this machine.

Automatic Feeding Device with Clamping Chuck.

Automatic PLC Electrical Controll Box with TFT HMI .

Specifications:

1. PIPE DIA.: 2-7/8กจ~7กจ

2. HOLE DIA. THICKNESS:3/8กจ~1-1/8กจ

3. PIPE THICKNESS:  3/8กจ~1/2กจ

4. PIPE LENGTH: 4 meters

Applications :

Oilfield Services Industry, Oil tubing, Oil casing, Vacuum Insulated Tubing, (HDPE) steel mesh reinforced polyethylene composite pipe.



Video:

   Optional Equipment:

Pipe/Tube Handling Equipment  CFPH-40-7 MORE

Pipe/Tube Deburring Machine

CFPBM-40-7 MORE

More Drilling Machines
