~ CNC/NC TWO SPINDLE PRECISE DRILLING MACHINE for JOINT-PLATES ~

Features:

With interactive command and color display, easy learn and easy operation
With linear, matrix and flange drill pattern. It would not need the G, M code program.
With simulation function, it also can indicate which hole will be drilling by move coarser
It is possible to read the DXF file and display the hole pattern as well as outward of plate on screen.
Our drill machine is a strong gantry structure, it needs space save 1/2.
Our drill machine is a compact design. The gantry machine, CNC controller, hydraulic power system those were integrated.
The distance of two spindle that can be adjusted by hand-wheel and two spindle also can be active individually or simultaneously to reach the flexible goal.
With keep tight equipment to insure machine stable while machine is drilling.
The alignment and hydraulic fixture of plate which are two in one designed, the plate load, unload, clamp quickly and convenience.
The machine with four work area on the table, while one side of table is working another side of table allow user to load or unload plate. Thus, the machine there is no idle time and twice the amount of drilling.
With avoid spraying designed to save cooling water and keep the environment clean.
The spindle unit with automatic initial high for drilling:
The spindle unit is provided with a sensitive self-controlled speed change function for rapid reach to plate then change to preset speed for drills.
The user does not need consider the tool length and set automatic broken chip during drilling to enhance efficiency.
The spindle rpm control by inverter and the number of rpm is displayed on LCD. The user change rpm by knob adjusted.
Program hold can be active in any time while the tool dull, after replace tool, easy return and restart.
With center drilling function, providing user easy check the hope pitch of plate
The machine is provided with Auto-Off function. This function suit a large plate and there is a lot of hole to be drilled on night work.
It also can be optioned chip conveys, for chip collect and clean.

Specification:

Type

CSD-12/24

CSD-12/35

CSD-16/35

CSD-16/40

Capacities

Thickness

100mm

Diameter (standard)

16∮~32∮

(special)

32∮~50∮

Spindle

Number of spindle

2sets

Gear ratio

01:07.2

rpm

160~330rpm

Power

Spindle motor

5 HP

Inverter

5 HP

Hydraulic unit(Feed)

1.5 HP

Hydraulic unit(Fixture)

1.5 HP

X,Y servo motor

AC servo

Plate dimension

L* W mm

L*W mm

Work area

one L*W

1200*2400

1200*3500

1600*3500

1600*4000

two L*W

1200*1150

1200*1700

1600*1700

1600*1950

four L*W

550*1150

550*1700

750*1700

750*1950

X,Y positioning speed

8000mm/min

Number of hydraulic fixture

8sets

12sets

16sets

Number of alignment

4sets

Power supply

3ø,220V,20HP

3 ø,220V,20HP

Air press

4kg/cm2

Machine weight

4.5T

5.0T

6.0T

8.0T

Machine dimension(L*W*H)

3470*3400*2750

4570*3400*2750

4570*3800*2750

5070*3800*2750

Chip convey (L=1550mm)

Option

*This information is subject to change without prior notice.

~ CNC/NC PRECISE DRILLING MACHINE for JOINT-PLATES ~

Features:

With interactive command and color display, easy learn and easy operation
With linear, matrix and flange drill pattern. It would not need the G, M code program.
With simulation function, it also can indicate which hole will be drilled by moving coarser
It is possible to read the DXF file and display the hole pattern as well as outward of plate on screen.
Our drill machine is a strong cantilever structure, that correspond to humane engineering designed,to allow compact and easy operation
The machine’s X,Y axes, were equipped ball screw , AC servo motor and linear guide, providing accurate positioning.
The machine, CNC controller, hydraulic power system that is integrated design, to allow easy installing
The alignment and hydraulic fixture of plate which are two in one designed, the plate load, unload, clamp quickly and convenience
The machine with two work area on the table, while one side of table is working another side of table allow user to load or unload plate. Thus, the machine there is no idle time and twice the amount of drilling.
With avoid spraying designed to save cooling water and keep the where environment clean.
The spindle unit with automatic initial high for drilling: The spindle unit is provided with a sensitive self-controlled speed change function for rapid reach to plate then change to preset speed for drills. The user does not need consider the tool length and set automatic broken chip during drilling to enhance efficiency.

The spindle rpm is provided with an inverter controlled and by knob adjusted also the number of rpm is displayed on LCD.
Program hold can be active in any time while the tool dull, after replace tool, easy return and restart.
With center drilling function, easy check the hope pitch of plate
The machine is provided with Auto-Off function. This function is suit a large plate and that there is a lot of hole to be drilled on night work.
It’s also can option the chip conveys, for chip collect and clean.

Specifications:

Machine type

CSD-06/20

Drilling capacities

Thickness

100mm

Hole diameter

16∮~32∮

Spindle

Gear ratio

01:05

Rpm

160~500rpm

Power

Spindle motor

5 HP

Inverter

5 HP

Hydraulic unit

3 HP

AC Servo motor

1 HP

Plate dimension (MAX)

L* W mm

Work area

Total area L*W

2000*600

Two area L*W

1000*600

X,Y positioning speed

9000mm/min

Hydraulic Fixture

6sets

Alignment

2 sets

Power supply

3 Phase,220V,10HP

Machine weight

2.5 T

Dimension(L*W*H)

3185*2130*2643 mm

Chip conveys

Option (L+1215 mm)

*This information is subject to change without prior notice.

FEATURE

Automatic drilling operation allows for equal or unequal hole distance
3 kinds Controller for choice: CNC / NC / PLC control. It can drill any angle on the tube.
Touch - sensing screen (optional )
Allows for a selection of manual or automatic drilling mode
Forced oil mist lubrication (optional )
Allows for multiple settings, maximum memory capacity : 99 sets
Drilling head can be controlled by Hydraulic System or Servo System( optional )
Hydraulic work piece clamping is available ( optional )
Drilling holes on the Tube/Pipe
with Multiple-Shaft Controller
With Servo Motor to feed
Automatically, Precision Location, High Efficiency and Easy Operation
It is available for each aluminum material - short - scale multiple processing & long - scale processing.
Choice of working lengths: 3.5,4.5,5.5 and 6 meters. (Longer Length is welcome)
Traveling column features highs positioning accuracy. ( optional )
The column longitudinal traverse is driven through servomotor combined with gear/rack transmission. ( optional )
Three axes travels and driven by servomotors. ( optional )
High precisions linear guide ways on three axes assure fast and smooth movements. ( optional )
12-tool magazine is standards equipment. ( optional )
Air clamps far workpieces. (Hydraulic clamps are option)
Movable chips are equipped at the bottom of the machine. providing convenient chip handling. ( optional )

TURRET TYPE MAGAZINE ( optional )
1. the turret type magazine employs armless tool Charge. 0i-directional, random tool selection increases tool change speed. ( optional )
2.The turret accommodates BT40 taper of cutting tool Standard loading capacity is 12 tools. ( optional )
3. 10-tools magazine is optional. ( optional )

OPTIONAL EQUIPMENT
Cutting tools 、Controller 、Spindle cooler 、Heat exchanger for control cabinet 、Heavy duty hydraulic clamp (vise) 、Extra powerful vise 、4th axis machining 、Safety screen 、Tool length measuring device 、Moveable clamp carriage 、Pneumatic stop plate 、Safety guard (for cutter) 、Infrared ray safety sensor 、Hidden type elevation safety guard 、Automatic chip conveyor

( optional )

Multi-Axis Tube / Pipe Drilling Machine

Length	3m, 4m, 5m, 6m(Optional: Longer Length is welcome)
Width	250 mm (Optional)
Oil Pressure Drill Head Motor Horsepower	2 HP Level 4(or 3 HP Level 2)
Oil Pressure Drill Head Rotation Rate	3200 R.P.M.
Maximum Drill Capacity	35 mm (Aluminum)
Maximum Drill Distance	150 mm
Frequently Accessed Memory Set	99 sets
Automatic Positioning	X-axis 40M/Min
Automatic Positioning Precision	±0.1 mm
Server Motor	400 W
Touch Screen	5.7"

*Automatic drill machine (X-axis automatic positioning, Y-axis manual [optional: automatic] positioning, Z-axis pinpoint automatic drilling).
*PLC control, touch control, can manufacture both equal and unequal distance drilling.
*Accurately controlled oil mist system greatly improves lubrication and cooling effect. ( optional )
*Clamping system is optional. (atmospheric pressure or oil pressure).
*Can make both manual drilling and automatic drilling.

Controller Panel:

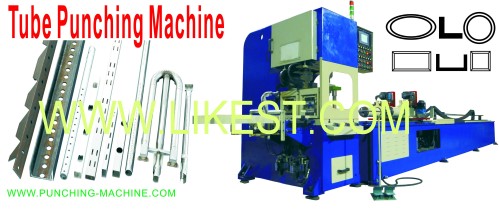

Tube Punching Machine
