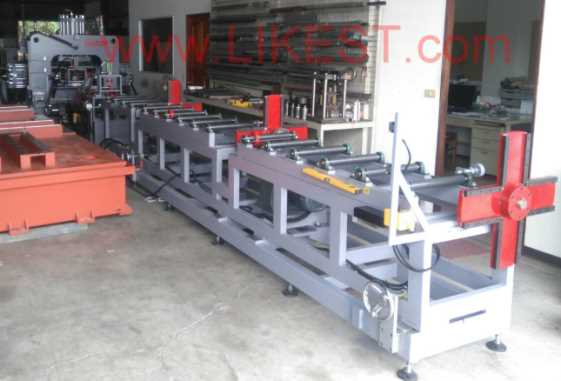

automatic H-beam / I-beam / W-beam punching and marking machine with Loading and Unloading System

-Auto tool change: up to 9 punch-tools in one cycle

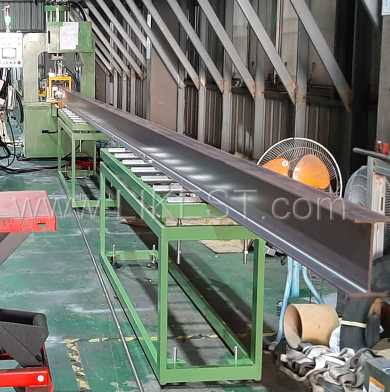

-Auto loader and un-loader the steel beams and profiles.

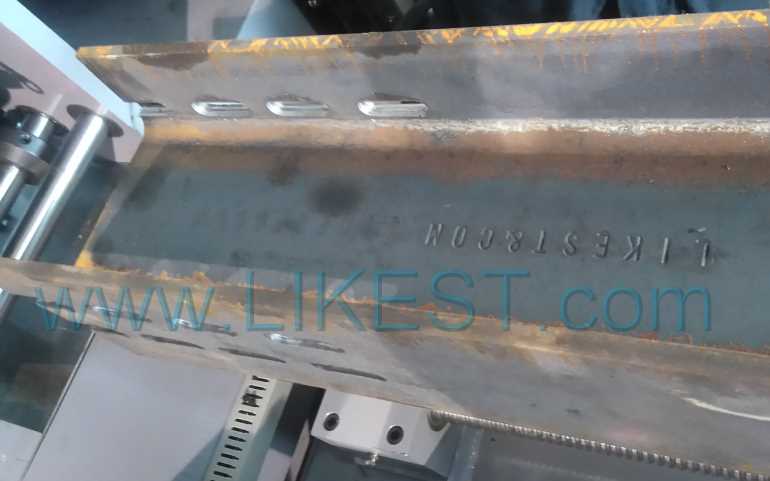

Punched Samples:





Video:

Feature:

fully automatic H Beam Punching, Shearing and Marking Line

Option: combined with cutting machine / band saw.

It can fulfill the punching process for flanges and webs of H-beam, I-beam, W-beam, the distance from hole to beam end, the distance between holes are controlled by servo motor, automatically positioning of punching hole, NC/CNC positioning is fulfilled by automatic H-beam infeeding device.

it is able to punch from 3 to 9 different tool shapes in 3 different directions (vertically and from both horizontal sides).

It uses high quality PLC and servo motor, the upper computer is industrial computer IPC control, with friendly interface, and convenient operation, easy to learn.

  It consists of flange punching unit, web punching unit, NC/CNC automatic infeeding conveyor, Hydraulic system, Pneumatic system.

Specifications:

  100 Tons Hydraulic Cylinder * 3 sets (Top / Left / Right)

  Vertical Punching Unit to mark Character (words): indent mark: use Letter Stamp and Number Stamp to be individual mark. You can change every letter or number manually before punching.

  Left Punching Unit: Punch 2 Slots

  Right Punching Unit: Punch 2 Slots

Application:

  Solar Energy, solar panel, construction, CSP & PV Solar Structures, facilities and engineering.

  Steel channels, steel angles, C Channel, U Channel

  Workplace platforms.

  Factory shops, warehouses.

  Truck bed framing.

  Purlins, lintels and even as bridge girders,

  Steel Workshop, Steel Structure Platform, Steel Fabricated House

  MOBILE SHELVING SYSTEM, Bed, Furniture, Scaffolding (Ring Lock & CUP Lock, Tours, Frame Systems, Table type, Props, Accessories), LADDERS, truck body builders, display stand, metalworking industries manufacturing for Automotive Manufacturing, Gas Stove, power energy and electrical wire distribution, Racking and Shelving and base of your Custom Signs, Electronic Displays, Resorts & Casinos, Outdoor Media and Repairs & Maintenance, high volume and different purpose punching for Rectangle Tube/Round Tube/Circle Tube/Square Tube/Ellipse Tube/Perforation and much more......

solar panel  MORE

Fence/Fencing/Windows

Metal Scaffolding making machine  MORE

Racking and Shelving System  MORE

 Ladders

@
