Standard Accessories
BT/CAT/DIN-30/40 Standard Spindle 10000rpm (Direct Driven)
High Speed Servo System Chip Flushing System + Water Gun
Electrical Cabinet with Heat Exchanger Spindle Coolant Nozzle System
RS232 Interface Spindle Air Blast
Fluorescent Work Light Lubrication System (proportional pressured)
Alarm Lamp Auto Interrupt & Power Off System
Tool Box & Tools Portable Hand Wheel (MPG)
Leveling Blocks & Bolts Operation Manual, Maintenance Manual
Fully Enclosed Splash Guard CNC Manual
Rigid Tapping Test Report In CD Format

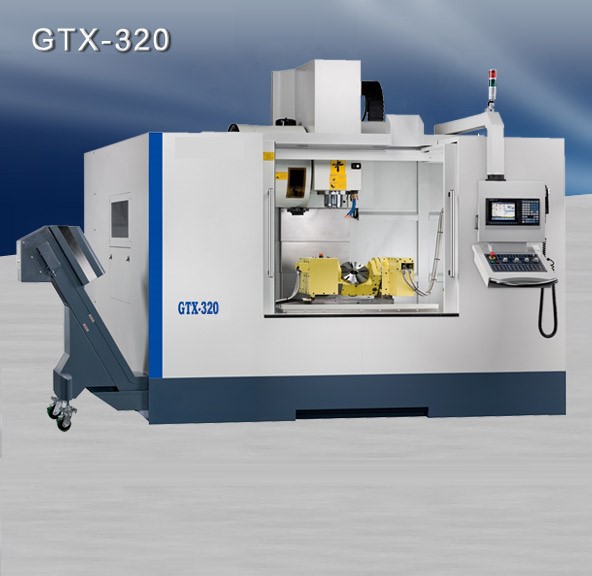

5-Axis Specification
Work Table Diameter (mm) Φ320
Center Bore Diameter (mm) Φ70H7
Height Of Table (mm) 355
Height Of Table (Vertical)(mm) 255
Width Of T-Slot (mm) 14H7
Width Of Guide Block (mm) 18
Servo Motor Type (Fanuc) α8i Rotary
α12i Tilt
Tramsmission Ratio 1:120 Rotary
1:120 Tilt
Indexing Resolution (deg.) 0.001
Tilting Angle Range * +30 ~ -120
Maximum Rotation Speed (min-1) 16.6 Rotary
11.1 Tilt
Maximum Load In Horizontal 200Kg
In Tilt (0 - 90 degree) 150Kg
Permissible Cutting Force (kg-m) 40
Drive Pressure / Method (kg/cm2) 50 / Hydraulic
Brake Torque (kg-m) 118 Rotary
118 Tilt
Indexing Accuracy (sec.) 15" Rotary
50" Tilt
Repeatability (sec.) 4" Rotary
8" Tilt
Please contact Finetech for more detail specification
Optional Accessories
Spindle Direct Drive (rpm) 12000, 15000
Spindle Built-in 24000, 30000
Spindle Oil Coolant System Available
Chip Conveyor System Belt Type / Scrapper Type
Chip Conveyor System Internal Type
Coolant Through Spindle (CTS) 15 - 20 bar
Linear Scale Heidenhain LS
Oil Skimmer / Separator Available
Tool Probe TS-27R , NC4
Transformer 20/25KVA
Workpiece Measurement Device MP12 , OMP40 60
Technical Specifications
Travel (mm)
X-axis 1000mm
Y-axis 600mm
Z-axis 550mm
Spindle Nose To Work Table Surface  130 - 600mm
Maximum Traverse Speed
X-axis 30m/min
Y-axis 30m/min
Z-axis 30m/min
Position Accuracy
X, Y & Z *+/-.005mm
Repeatability Accuracy
X, Y & Z *+/-.002mm
Guide Way (Roller Guide Way)
X-axis 2 Roller Guide Way (SP)
Y-axis 2 Roller Guide Way (SP)
Z-axis 2 Roller Guide Way (SP)
Lubricating System  Oil Cooled
Lubricator 2 x Lubricator WAY LUBE 68
Ball Screw Diameter  Pitch 10mm
X-axis 32mm
Y-axis 32mm
Z-axis 32mm
Tool (40 taper) ARM Type
Maximum Length 300 mm
Maximum Diameter 80-150 mm
Maximum Each Tool Weight 7 Kgf
Maximum Maximum Tool Weight 170 Kgf
Tool Change Time (T - T) 1.2 second (60Hz)
Tool Change Time (C - C) 4 second (60Hz)
Spindle Taper  30 & 40
Spindle Motor  11 KW
Other
Air Supply Required  7Kg / square cm
Power Supply Required  25/30 KVA
Machine Weight 5000kgs
Machine Dimension For Shipping  306*231*256cm (40'HQ)
