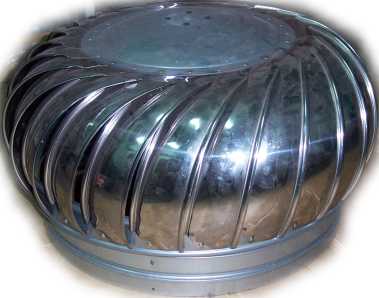

TURBINE VENTILATOR MACHINE (NO NEED POWER)         Frame Cold Roll Forming Machine/Angle Steel/Square Tube Forming Machine Production Line



Angle Steel/Angle Iron Forming Machine Machine                    Square Tube Forming Machine Machine

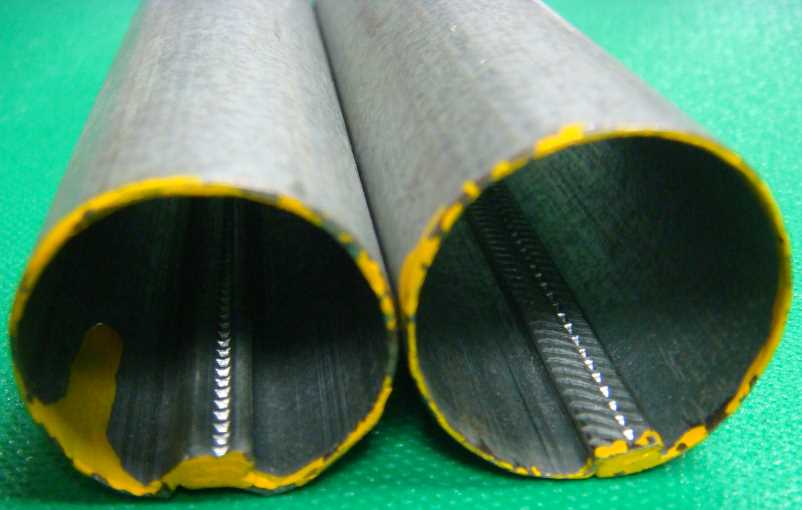

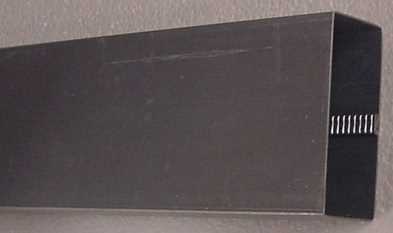

LOCK SEAM TUBE MACHINE / Lock Seam Soldering Brass Tube Mill / Pipe & Tube, Lock Seam Tubes & Tubing

Metal Scaffolding Making Forming Machine

More Profiles

Cable Tray Swaging Making Forming Machine

PROTECTION EDGE MACHINE for Steel Roll Packing

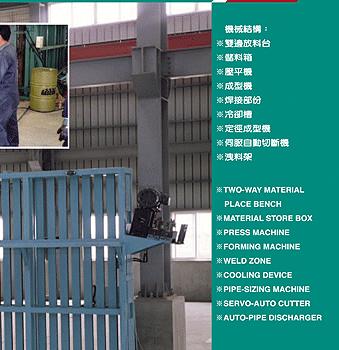

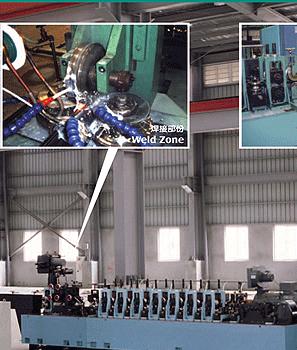

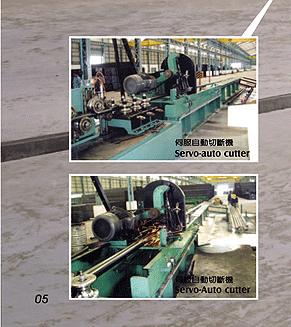

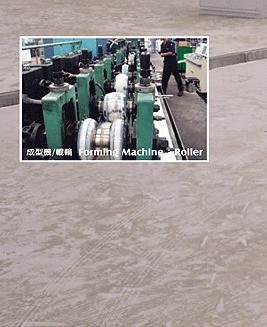

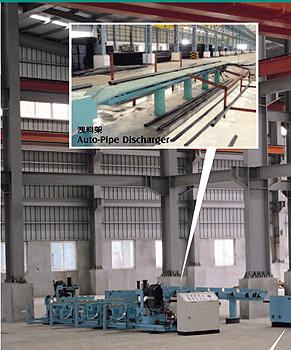

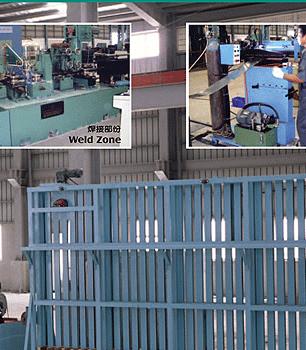

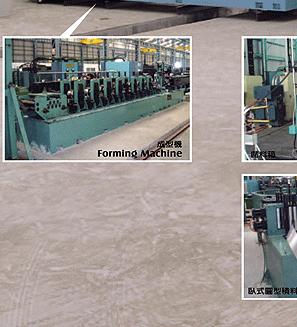

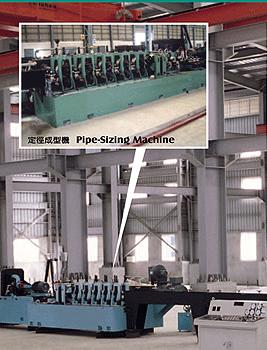

TUBE FORMING MAKING MACHINE

AUTOMATIC HIGH-FREQUENCY

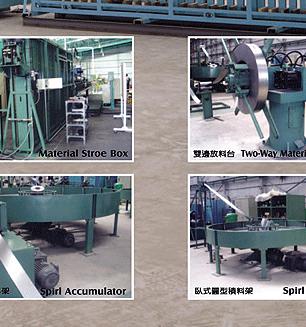

Model Tube Diameter (mm) Plate Thickness (mm) Forming Speed (m/min) Power (DC/KW) High Frequency (KW) Servo Auto-Cutter Power (KW) Spiral Accumulator (AC/KW)
135 9.6~22 0.3~1.5 30~100 36 100 25 11
160 12~32 0.4~2.0 30~100 44 100~150 27.6 11
180 16~38 0.5~2.3 30~100 60 200 33 15
220 19~60 0.7~3.0 20~90 90 200 40 22
260 25~76 1.0~3.6 20~90 112 300 44 30
300 42~114 1.2~4.5 20~70 168 350 55 37
350 60~140 1.6~5.5 20~60 205 400 67 44
