Pipe Notching Machine

Tube & Pipe Notching

Horizontal type single head notching machine

With light curtain and fencing/Horizontal Type Hydraulic Notching Bending Arc Machine

1) Apply to Steel, Alloy, Cro-Moly
2) Available to round tube, square tube, oval tube

3) Pipe thickness. Max. t=2.8mm
4) Pipe diameter Max. O.D=2 1/2¡¨
5) Pipe length=150~1200mm
6) Notching angle=0~180 degree

pipe notcher machine

Vertical Type Double Head Notching Machine

1)Tube double ends notching

2) With 3rd axis notching angle

Pipe Tube Notching Machine

Vertical Type 3 Head Notching Machine

1) Design for 3D-bended tube ends notching

2) Customized design

¡@

¡@

¡@

¡@

¡@

¡@

¡@

¡@

Tube Notching (Stamping) Machine

(1) The notches can also be developed by stamping them on an inboard mandrel. This allows for production of "curved" notches. In addition, this process lowers production costs since deburring is not required.

(2) Production speed: about 8~10 seconds/piece

(3) Application: Car Headrest

Abrasive Belt Polishing Notching Machine

CIHD-520 Manual loading and feeding the pipe

¡@

¡@

¡@

Pipe notching machines

CIHD-730 Auto feeding by Hydraulic and grinding the pipe with protractor (dial scale/graduated circle) to notch the tube in the right angle

Specifications: Special Drilling Machine for drill a hole through the pipe.==>OPTIONAL

Type

CIHD-520

CIHD-710

CIHD-730

CIHD-760

clip the workpiece

Manual

Air Pressure (5~7kg/cm2)

Min. Grinding Outer Dia.

19mm (0.75")

0.36" (9mm)

0.75" (19mm)

3"

Max. Grinding Outer Dia.

76.3mm (3.00")

1" (25.4mm)

4" (100mm)

6"

Cutting Angle

0-45 degree

Axis Mould

31.8¡B38.1¡B50.8

25.4¡B31.8¡B38.1¡B50.8¡B63.5

Positioner Mould

31.8¡B38.1¡B50.8

25.4¡B31.8¡B38.1¡B50.8¡B63.5

Belt Size

200mm(W) x2500mm(L)

8"x240cm

Rotation Speed

2000  RPM

2500RPM

Weight

150KG

230KG

Dimensions

1550X950X1200 mm LXWXH

2200X1250X1440 mm LX WXH

Grinding Motor Power /Feeding Motor Power

3HP,1/4HP

3HP,1/4HP

5HP,1/4HP

7.5HP,1/4HP

Features:

1. Provide grinding  various diameter and thickness of pipe.

2. You can use the same Axis-Mould to grind the tubes with many kinds of outer diameters and thickness.

3. The Feeding-Material-System provides precious Lining Guides with stability.

4. Easily operating

5. Reduce production time and Earn more money

6. The fixture using high rigidity of  linear motion way to get stable grinding.

7. The notched end can be grinded accurately by centering the opposite side of pipe.

8. Suitable for iron tube, aluminum tube, stainless steel tube, galvanic pipes and so on.

Standard Accessories:

  • Notching Belt (Abrasive Belt/Emery Cloth Belt): 8"

  • Material Feeder Shelf: 3m

  • Mandrel

  • Working Table (Up/Down): 1 set

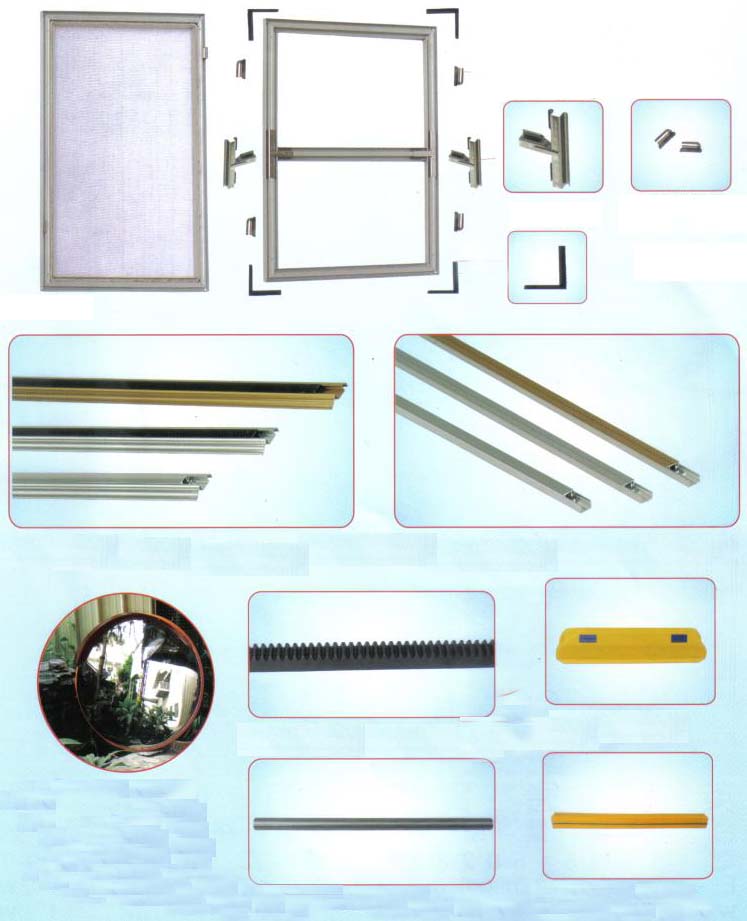

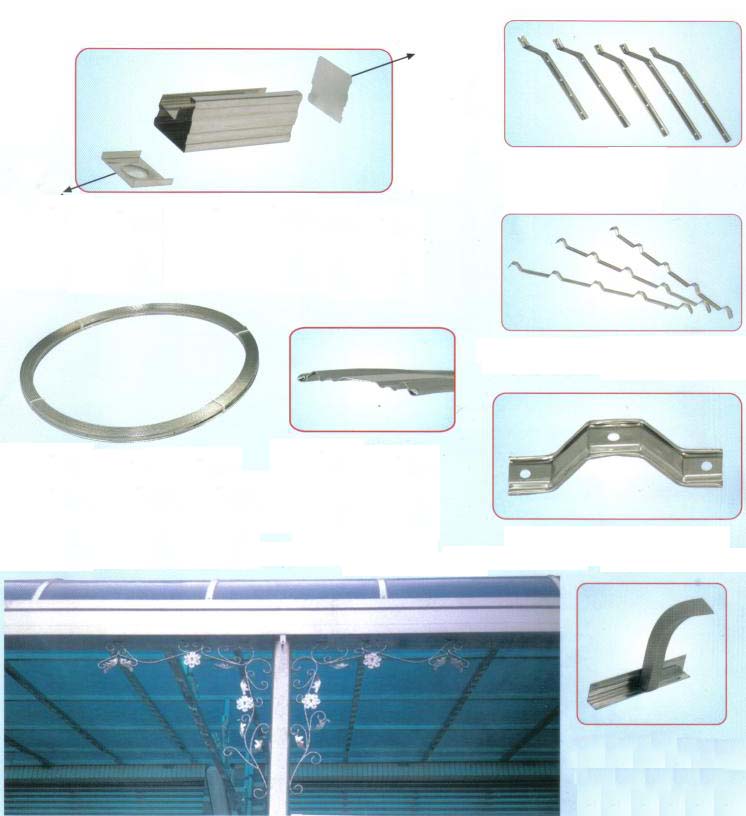

Application :

Hydraulic Plate Notching Machine

CYCE-220/CYCE-220S

CAPACITY:

4.0-6.0mm

CUTTING ANGLE:

220x220mm

STROKE:

50mm

PRESSURE:

15-20 Tons

Applicably in cutting angles and edges of Mild Steel (Soft Steel) and Stainless Steel plates shown in below drawing

MODEL

CYCE-220

CYCE-220S

MILD STEEL

CUTTING CAPACITY (mm)

4.0

6.0

SIZE

MAX. CUTTING ANGLE (mm)

220x220

220x220

STROKE

(mm)

50

60

MOTOR

3HP

5HP

OIL HYDRAULIC

CYLINDER

15TON

20TON

MAX. PRESSURE

140KG/cm2

140KG/cm2

PUMP

30/MIN(60HZ)

30/MIN(60HZ)

25/MIN(50HZ)

25/MIN(50HZ)

TANK

40

40

GROSS WEIGHT

¡@

950KG

1000KG

PACKING SIZE (LxWxH) ¡@¡@¡@¡@¡@¡@¡@(mm)

1170x990x1300

1170x900x1300
