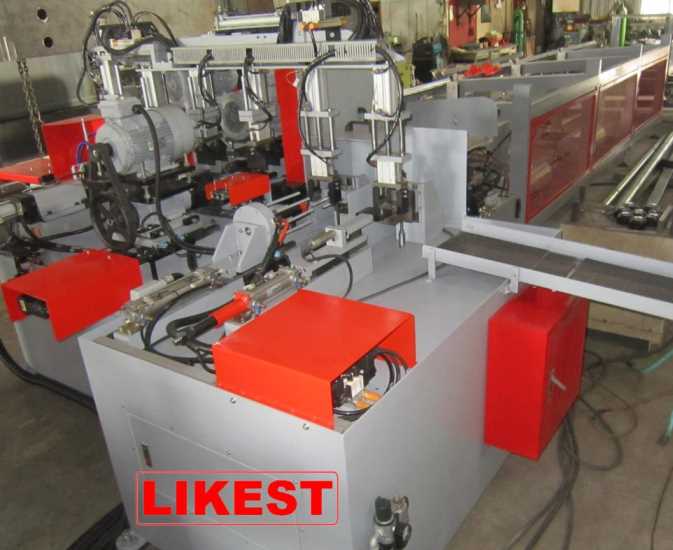

Automatic Tube Cutting and Double Ends Chamfering Machine

tube Cutting and Chamfering Machine

With blow/remove the scrap and length inspection

tube wheel Cutting and Chamfering Machine

Rolling tube cutter that avoids burr generation, spark and tube deformation

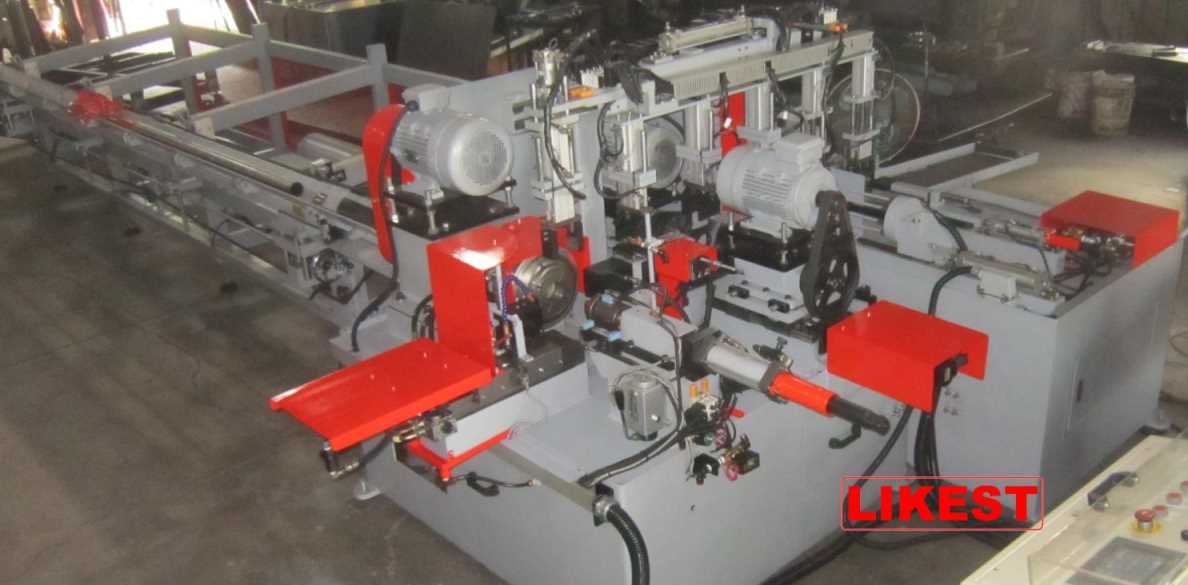

pipe cutting and chamfering machine pipes cutting and chamfering machine tube and bar cutting and chamfering machine

Features:

Automatic Production Line: Full Automatic Cutting and Double /Dual Sides Tube Ends Chamfering Machine

Chamfering Inside and Outside Tube and Facing

Working process: automatic loading => cutting => feeding => chamfering

May connected to Tube Deburring Machine  or Tube Chamfering Machine , Length Measuring and Stacking.

Used for automotive components (suspension spacers, anti vibration bushes,bushing, engine support, steering columns, etc.) for motorcycle (chain rollers, shock absorber lining, cylinders barrels, hubs, etc.) precision components (bearing, rollers, pump and engine shafts, bolts, nits).

Specifications:

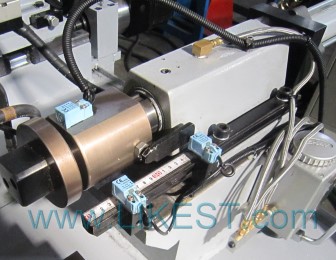

Including function to blow/remove the scrap and length inspection device (Go/No Go gauge).

Equipped With Auto Loading and Unloading Systems

The maximum length of Automatic Tube Loading System before cutting: 6 Meters

The length of Automatic Tube Loading System after cutting: 100mm~300mm

Dimension of Tube : Ø20mm ~ Ø114mm

Saw Blade for 1 PC

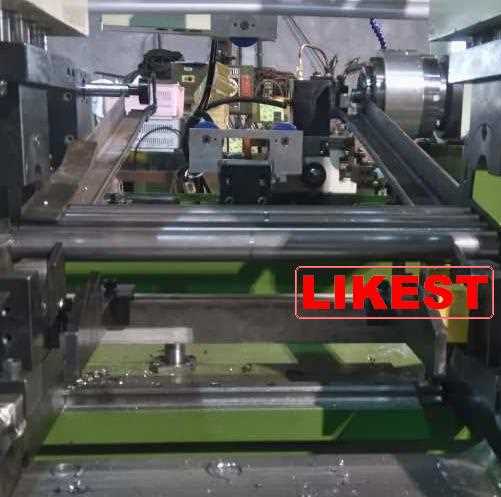

Long tube Cutting and Chamfering Machine

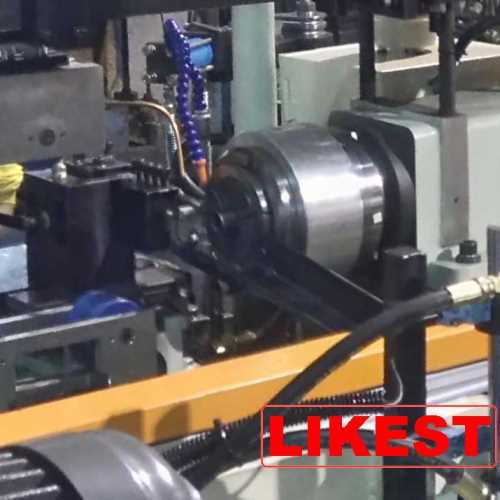

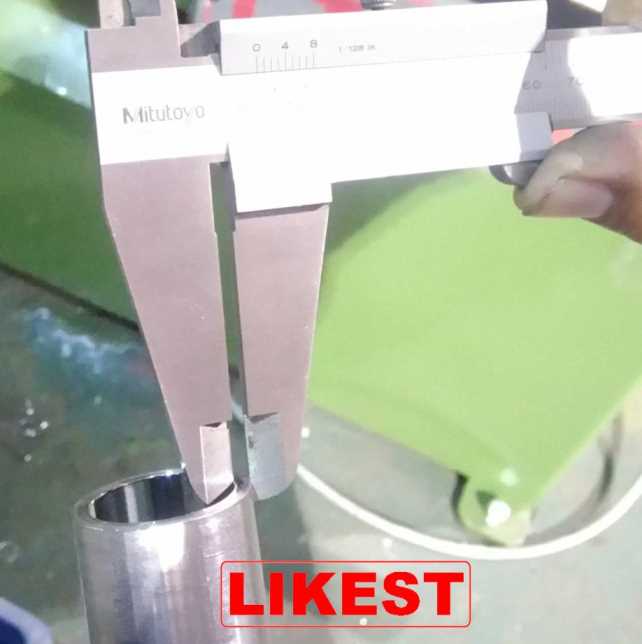

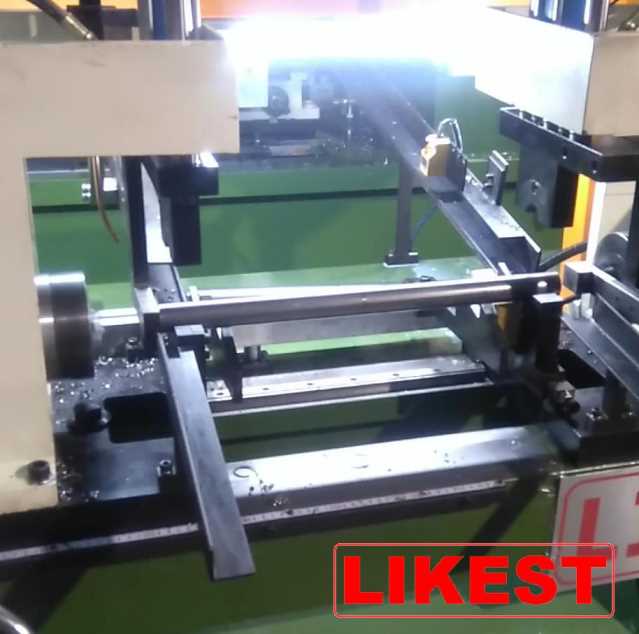

tube lathe cutting.jpg cutting machine and chamfering machine saw blade cutting and chamfering machine tube cutoff machine integrated with chamfering machine

Features:

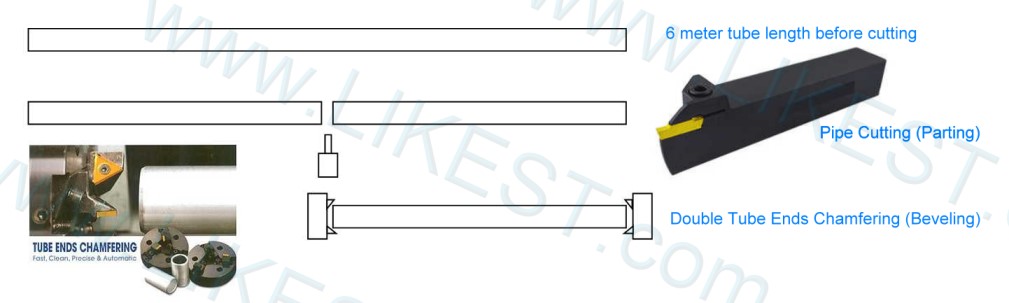

1.High Speed Pipe Parting and beveling Machine

2.Automatic single and double tube loading, feeding and cutting

3.May connected to Tube Deburring Machine  or Tube Chamfering Machine , Length Measuring and Stacking.

4.Electric servo controlled feeding , cutting and chamfering

5.Working process: automatic loading => cutting => feeding => chamfering

6.Automatic loading magazine for tubing and solid bars up to 6 meters in length.

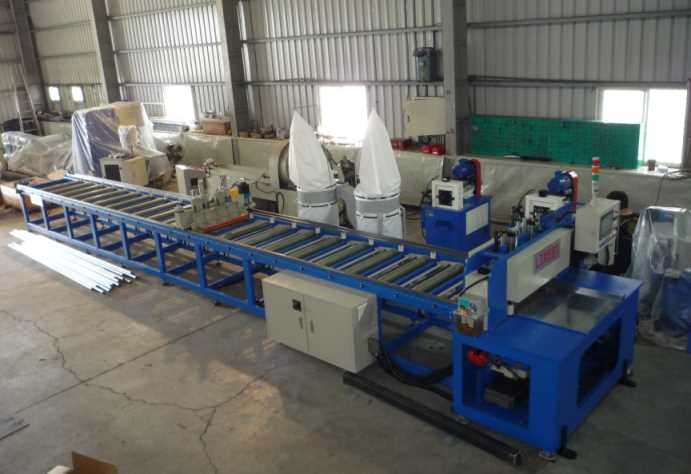

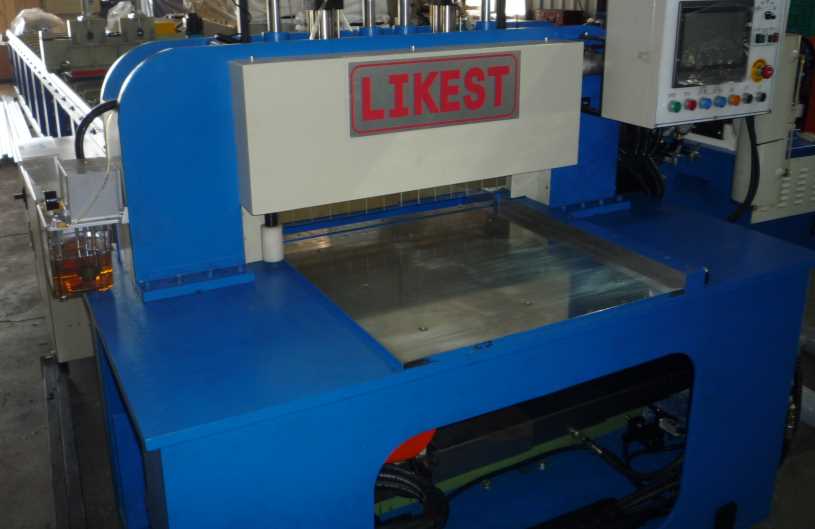

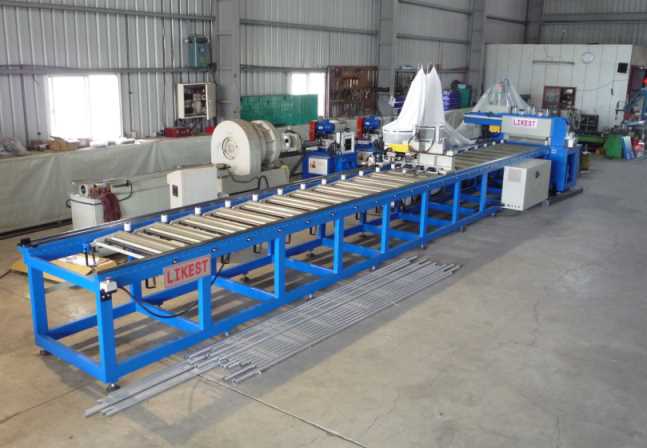

Auto Feeding Aluminum Tube / Profile Cutting Machine with Dust Collector System

Features:

-  Cutting Disc Motion: Right => Down => Left => Up

-  With Dust Collector System

-  Tube Length :8 M

-  Application: OPC (Organic Photo-Conductor) Drum for Fax Machine/POS

@
