SPM Chamfering Machines

Automatic Stud Bar Chamfering and Marking Machine

tube cutting and double end chamfering machine

Manual Type Stud Bar Chamfering and Marking Machine

Tube and Solid Bar Chamfering Machine

Single End tube and bar Chamfering Machine

Double ends tube and bar Chamfering Machine

rebar chamfering machine

Polygon Chamfering Machine

Special Purpose Chamfering Machine

SPM Chamfering Machines

Full Automatic Stud Bar Chamfering and Marking Machine  MORE

Automatic Cutting and Double Tube Ends Chamfering Machine  MORE

Manual Type Stud Bar Chamfering and Marking Machine

Single Tube End / Solid Bar facing and chamfering  Machine



Features:

-Chamfering Inside and Outside Tube and Facing

-(3) operations all at the same time

-Semi Automatic

-Pneumatic

-Available in 3 sizes

-Single Tube End and Solid Bar Chamfering Machine
-Cost Effective and Easy to Use Tube End Finishing

    Specifications:



CFMEFS-50

CFMEFS-90

CFMEFS-155

ID Chamfer + OD Chamfer + Tube End Facing

Dia.12.750.8mm

Dia.3090mm

Dia.40155mm

OD Chamfer Only

Dia.612.7mm

Dia.3090mm

Dia.40155mm

Thickness

0.8mm2.5mm

0.8mm5.0mm

Tube Length

L50mmunlimited

Motor

2HP

3HP

5HP

Cutting Disc

1 PC

Clamp

1 PC

Cylinder Volume





120L

Machine Weight

120kg

130kg

550kg

Machine Dimension

700*700*1050

700*700*1050

1100*820*1300

Processing Speed

23 seconds

Feeding

Manual

Power Source

Pneumatic (Air)

Hydraulic (Oil Pressure)

Operating Pressure

57kg

1020kg

Max. Chamfer

2C

4C

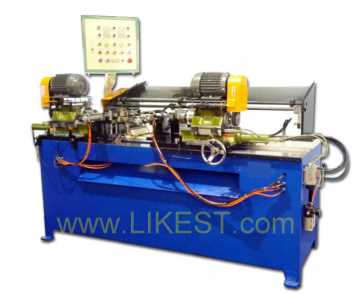

Double tube Ends / Solid Bar facing and chamfering Machine

Features:

-The machines may offer a completely automatic loading, feeding and chamfering process.
-This range is suitable for cleanly and evenly chamfering both ends of the tube, as well as chamfering the inside, outside and face of the material.
-External and internal chamfering with facing in one process for double sides of tube.

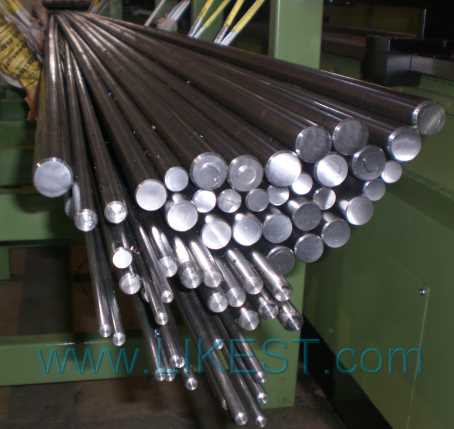

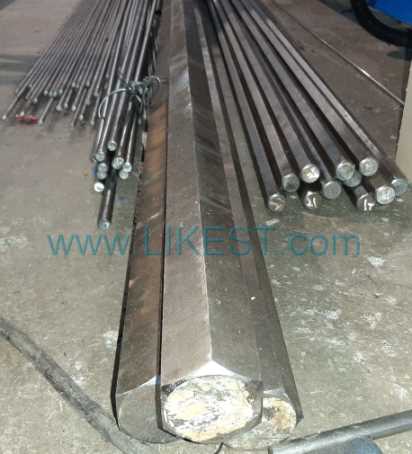

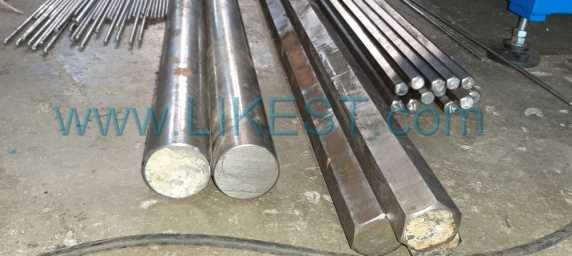

Steel rods solid bar chamfering machine, double head tube chamfering deburring machine

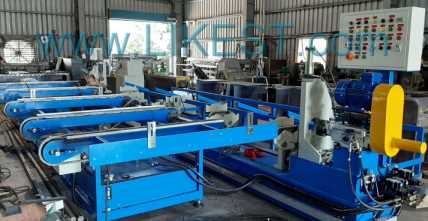

Automatic double end bar chamfering machine for long bar with loading and unloading system (bar O.D. 3 inch / bar length 6M)

Achaflanadoras y Biseladoras de Tubo - Máquinas y Maquinaria Para Biselado y Achaflanado de Tubos

Rebar Chamfering Machine and Rebar Beveling Machine

Features:

-This chamfering machine is a beveling and deburring for Rebar/Stud bolts / ROD/ Solid Round Bar/ Tube / TMT Bar.
-This machine can outer chamfer the outside diameter Ø10~80 mm of the stud bolt (bar) end. Facing only for the Rebar Diameter under 12 mm.
-Tube: Suitable Tube diameter: Ø 40 ~ Ø 155mm [Copper and Mild Steel Working Capacity ( mm )]

Polygon Chamfering Machine   + More detail

Polygon machines are unique machine tools designed to machine polygonal components or to enable multiple grooving.

CFSY-400

Workpiece Diameter

4 ~ 40mm

 Workpiece Length

25 ~ 400

Workpiece Type

 hexagon . round .square

Output (pce/per min)

2 ~ 3

Horse Power

7 HP

System Used

Hydraulic System

Machine Dimensions (LxWxH)

1800 x 1800 x 2000 mm

Net Weight

1250 KG



Workpiece Diameter

8 ~ 70 mm

Workpiece Length

100 ~ 1200 mm

Workpiece Type

hexagon . round .square

 Output(pce/per min)

1 ~ 2

Horse Power

10 HP

System Used

Hydraulic System

Machine Dimensions (LxWxH)

3000 x 2500 x 2500 mm

Net Weight

2500 KG

special purpose Chamfering Machine

Eccentric Chamfering Machine

Inner Tube Boring And Chamfering Machine

Semi-auto. Tube Bulging Machine

Tube Knurling Machine
