  METAL SAWING MACHINE

  • HYDRAULIC SEMI-AUTOMATIC TYPE

    Precision Circular Sawing Machine (Hydraulic Type)

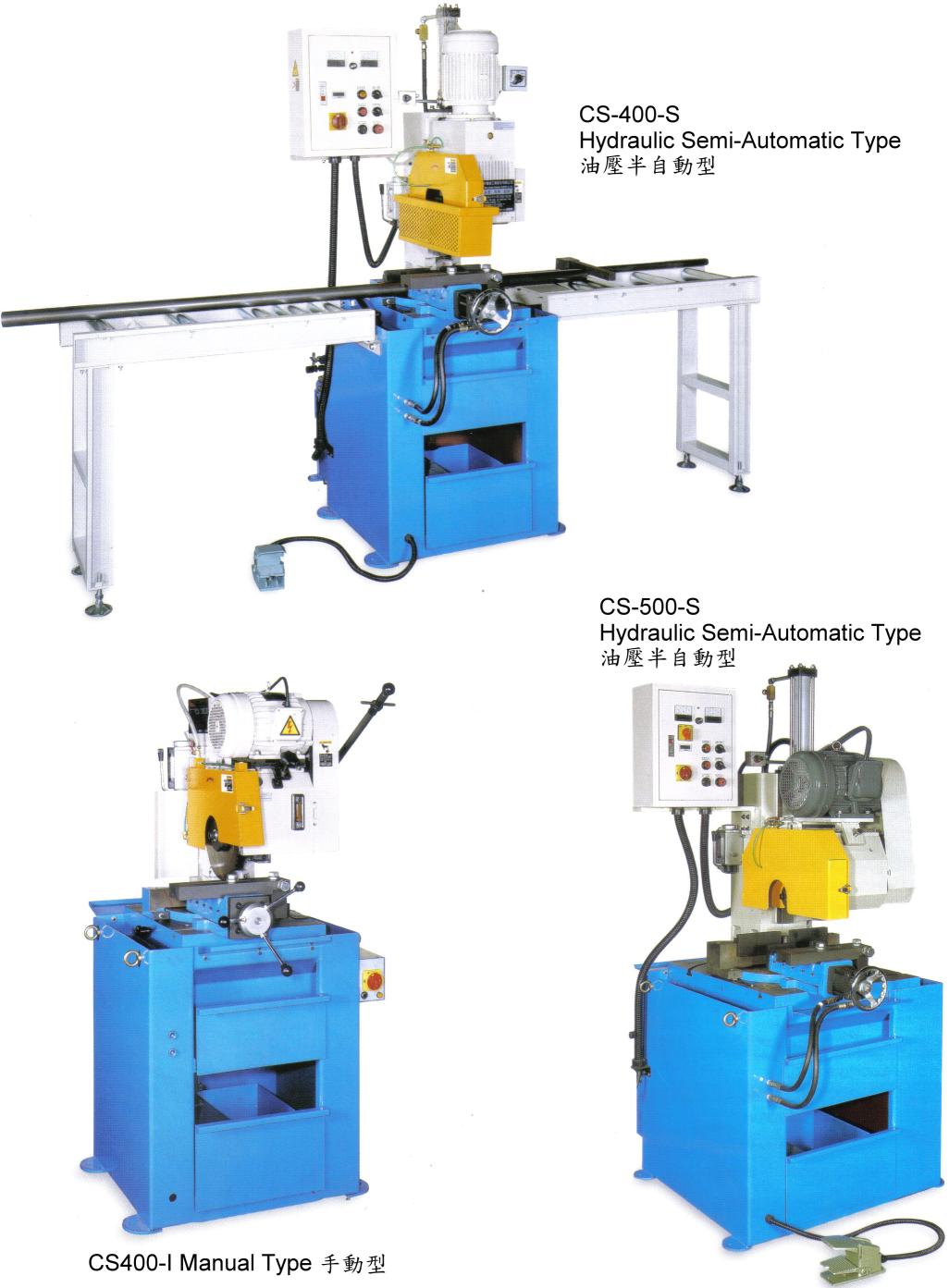

  • CS400-I Manual Type 手動型

  • CS-400-S Hydraulic Semi-Automatic Type 油壓半自動型

  • CS-500-S Hydraulic Semi-Automatic Type 油壓半自動型


Swiveling Angle (L 30º,R 45º)

　

Standard Accessories:

1. Basic machine frame

2. Hydraulic system

3. 600mm position ruler*1set

4. Over-Current protector

5. Counter

6. Round sawing blade 300mm*20mm--1pc

7. Tool box

　

Optional Accessories:

  • Roller type feeding rack (Material Feed Holder) is designed according to the length required. Size Stop is included.

  • Frequency Transformer

Features:

  • In European design, this model is driven by multi-set gears, suitable for heavy-duty cutting, featuring stable accuracy.

  • Automatic Cooling-Fluid Circulation assures that cutting-faces are smooth.

  • Vertical sideway saw feeding provide stable and assuring long cutter operating life.

  • Saw chips are treated together, allowing for easy and simple machine maintenance.

  • The machine body structure is Strong . Low vibration and long operating life.

  • The saw can be adjusted back and forth for accurate cutting position, ensuring extended saw-blade operating life and fast cutting.

  • Auto Lubrication System.

Functions:

  • Ideal for sawing and cutting Solid Steel, Carbon Steel and Stainless Steel materials as well as Thick-Stainless Steel materials as well as thick-welled tubes/pipes and other Irregularly Shaped Metal/Steel Materials.

  • Can handle 90° angle cutting, counterclockwise (Left Direction) 90° - 30° and clockwise (Right Direction) 90° - 45° beveling.

 CUTTING CAPACITY:

MODEL

CS400-I

CS-400-S

CS-500-S

Head Swivel/Head Rotation Angle

90º

45º

90º

45º

90º

45º

Solid Bar

Sawing Capacity Area (mm)

Dia. 70

Dia. 60

Dia. 70

Dia. 60

Dia. 70

Dia. 60


Dia. 135

Dia. 120

Dia. 135

Dia. 120

Dia. 180

Dia. 130


125x125

120x120

125x125

120x120

140x140

130x130


125x125

120x120

125x125

120x120

140x140

130x130


125x125

120x120

125x125

120x120

140x140

130x130


165x80

150x80

165x80

150x80

180x100

160x100

 SPECIFICATIONS:

MODEL

CS400-I

CS-400-S

 CS-500-S

Main Drive Motor/cutting Motor (50/60 HZ)

A-type 3 HP/6 Pole       B-type 2 HP/8 Pole

 5 HP, 4/6 Pole

Blade Speed/Cutting Speed

A-type 72/32 RPM        B-type 55/22 RPM

 22/32/44/63 RPM

Head Swivel/Beveling

 Can handle 90° angle cutting, counterclockwise (Left Direction) 90° - 30° and clockwise (Right Direction) 90° - 60° beveling.

Coolant Pump Motor/Cooling Pump Power

1/8 HP

Max. Clamping Capacity/Vise Opening

160 mm

200 mm

Saw Blade Size

Diameter (mm)

Ø250-Ø370 mm

Ø300-Ø500 mm

Machine Dimensions (LxWxH)(mm)

900x900x1700

1250x900x1950

1200x900x1980

Net Weight

450 kgs (995 LBS)

550 kgs (1220 LBS)

680 kgs (1500 LBS)

MANUAL TYPE

  • Manual operation

  • Double vises

  • Sawblade HSS Ø250 - Ø275mm, Ø250mm (standard)

  • 2 Speeds

  • 220V, single phase, 60 RPM (optional)

  • Movable guard (optional)

  • Manual operation

  • Double vises

  • Sawblade HSS Ø250 - Ø325mm, Ø300mm (standard)

  • 2 Speeds

  • Movable guard (optional)

  • Manual operation

  • Double vises

  • Sawblade HSSØ250 - Ø350mm, Ø350mm (standard)

  • 2 Speeds

  • Movable guard (optional)

  • Manual operation

  • Single vises

  • Sawblade HSSØ300 - Ø400mm, Ø360mm (standard)

  • 2 Speeds

  • Movable guard (optional)

C-275 Series

C-315 Series

C-350/370T Series



Movable saw guard (optional)

Standard saw guard

 CUTTING CAPACITY:

MODEL

C-275

C-315D

C-350D

C-370T

Saw Blade Size

　

　

　

Ø360 mm

Head Swivel

90°

45°

90°

45°

90°

45°

90°

45°

30°

mm

---

---

50

40

60

50

70

60

50

mm

---

---

---

---

50x50

45x45

65x65

55x55

45x45


mm

75

60

90

90

110

75

115

110

90


mm

75x75

55x55

90x90

85x85

110x110

90x90

115x115

100x100

70x70


mm

75x75

55x55

90x90

75x75

110x110

90x90

105x105

100x100

70x70


mm

75x75

55x55

90x90

75x75

110x110

90x90

150x100

100x100

70x100


mm

70x70

60x55

110x50

100x50

110x90

110x50

150x50

100x50

70x50

 RECOMMENDED PITCH OF SAW BLADE:

SOLID BAR

PITCH

PIPE

PITCH

Ø10 - Ø15

4-6

Thin Pipe

3-6

Ø15 - Ø20

6-8

Medium Pipe

6-8

Ø20 - Ø30

8-10

Thick Wall Pipe

8-12

Ø30 - Ø50

10-12

Choose correct pitch of saw blade for perfect cutting

Ø50 - Ø70

12-14

Ø70 - Ø80

14-16

 STANDARD EQUIPMENT:

Motor, switch, complete cooling system, adjustable stop, service tools.

 OPTIONAL EQUIPMENT:

Saw blade, movable safety guard, cutting fluid.

 SPECIFICATIONS:

MODEL

C-275

C-315D

Main Drive Motor

220V Single Ph. (Opt.)

3.0 HP/1.5 HP (2/4 Pole) 50/60 HZ

H Type 3.0/1.5 HP(2/4 Pole) 50/60 HZ(std.)

L Type 1.5/1.0 HP(4/8 Pole) 50/60 HZ(opt.)

Blade Speeds

H Type:60HZ 120/60 RPM, 50HZ 100/50 RPM (std.)
L Type:60HZ 60/30 RPM, 50HZ 50/25 RPM (opt.)

L Type:60HZ  35/70 RPM, 50HZ  58/29RPM (std.)
H Type:60HZ   52/105 RPM, 50HZ 86/43RPM (opt.)

Head Swivel

90°/45°

Clamping Vise

Double

Coolant Pump Motor

40W

Saw Blade Size

Diameter (mm)

HSS Ø250 - Ø275(10"-11") Standard Ø250

HSS Ø250-Ø325(10"-13") Standard Ø300

Bore (mm)

Ø32

Pin Holes (mm)

2xØ11xPCD 63

Air Pressure (Consumption)

---

Hydraulic Pump Motor

---

Operation Pressure

---

Machine Dimensions (LxWxH)(mm)

1400x870x1750

1400x1050x1800

Packing Dimensions (LxWxH)

(mm)

920x750x1500

750x1050x1500

(inch)

36"x30"x59"

30"x42"x59"

Net Weight

240 kgs(528 LBS)

260 kgs(572 LBS)

Gross Weight

300 kgs(600 LBS)

310 kgs(682 LBS)

　

MODEL

C-350D

C-370T

Main Drive Motor

3HP/4HP (4/8 Pole) 50/60 HZ or
4HP/3HP (2/4 Pole) 50/60 HZ

3HP/2HP (2/4 Pole) 50/60 HZ

Blade Speeds

L Type:50HZ 44/22 RPM, 60HZ 52/26 RPM (opt.)
M Type:50HZ 58/29 RPM, 60HZ 70/35 RPM (std.)
H Type:50HZ 86/43 RPM, 60HZ 105/52 RPM (opt.)

50HZ 17/34 RPM, 60HZ 20/40 RPM

Head Swivel

90°/45°

L45° 90° R30°

Clamping Vise

Double

Single

Coolant Pump Motor

40W

Saw Blade
Size

Diameter (mm)

HSS Ø250-Ø350(10"-14") Standard Ø350

HSS Ø300-Ø400 Standard Ø360

Bore (mm)

Ø32

Ø40

Pin Holes (mm)

2xØ11xPCD 63

Air Pressure (Consumption)

---

Hydraulic Pump Motor

---

Operation Pressure

---

Machine Dimensions (LxWxH)(mm)

1400x1050x1900

1300x850x1500

Packing Dimensions (LxWxH)

(mm)

750x1050x1500

800x900x1600

(inch)

30"x42"x59"

32"x35"x63"

Net Weight

300 kgs (660 LBS)

300 kgs (660 LBS)

Gross Weight

360 kgs (792 LBS)

360 kgs (792 LBS)
