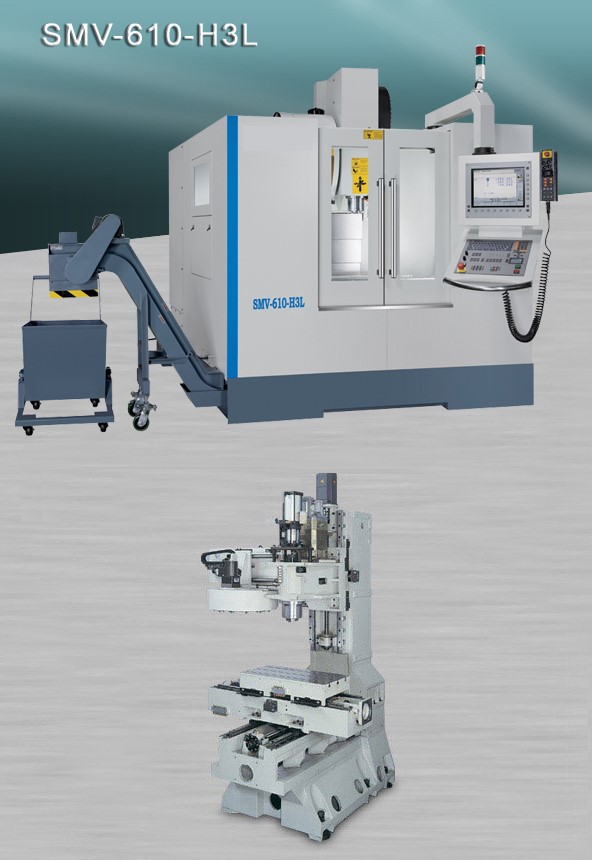

Standard Accessories |
BT/CAT/DIN-30/40 |
Standard Spindle 8000rpm (Belt Driven) |
Electrical Cabinet with Heat Exchanger |
Spindle Coolant Nozzle System |
RS232 Interface |
Spindle Air Blast |
Fluorescent Work Light |
Lubrication System (proportional pressured) |
Alarm Lamp |
Auto Interrupt & Power Off System |
Tool Box & Tools |
Portable Hand Wheel |
Leveling Blocks & Bolts |
Operation Manual, Maintenance Manual |
Fully Enclosed Splash Guard |
CNC Manual |
Rigid Tapping |
Test Report In CD Format |
Optional Accessories |
Spindle Belt Drive (rpm) |
10000, 12000 |
Spindle Direct Drive (rpm) |
10000, 12000, 15000 |
Spindle Built-in |
24000, 30000 |
Spindle Oil Coolant System |
Available |
4th Axis (Rotary Table) |
Available |
4th Axis Preparation |
Available |
Air Gun System |
Available |
ATC - Carousel Type |
BT/CAT/DIN-30/40 16 Tool |
ATC - Swing ARM Type |
BT/CAT/DIN-30/40 24 Tool |
Chip Conveyor System |
Belt Type / Scrapper Type |
Chip Conveyor System |
Internal Type |
Coolant Through Spindle (CTS) |
15 - 20 bar |
Flushing System + Water Gun |
Available |
Linear Scale |
Heidenhain LS |
Oil Skimmer / Separator |
Available |
Tool Probe |
TS-27R , NC4 |
Transformer |
20/25KVA |
Workpiece Measurement Device |
MP12 , OMP40 60 |
Z/F Gear Box |
Available |
Technical Specifications |
Travel (mm) |
X-axis |
610mm |
Y-axis |
400mm |
Z-axis |
380mm |
Spindle Nose To Work Table Surface |
130 - 510mm |
Work Table |
Table size (L x W) |
650 x 450mm |
T-Slot |
3 x 18 x 100mm |
Maximum Table Load |
400kgs |
Maximum Traverse Speed |
X-axis |
30/36m/min |
Y-axis |
30/36m/min |
Z-axis |
30/36m/min |
Position Accuracy |
X, Y & Z |
*+/-.005mm |
Repeatability Accuracy |
X, Y & Z |
*+/-.002mm |
Guide Way (Roller Guide Way) |
X-axis |
2 Roller Guide Way (SP) |
Y-axis |
2 Roller Guide Way (SP) |
Z-axis |
2 Roller Guide Way (SP) |
Lubricating System |
Oil Cooled |
Lubricator |
1 x Lubricator WAY LUBE 68 |
Spindle |
|
Spindle Taper |
30/40 |
Spindle Motor |
11 KW |
Other |
Air Supply Required |
6Kg / square cm |
Power Supply Required |
20/25 KVA |
Machine Weight |
3500kgs |
Machine Dimension For Shipping |
246 x 229 x 256cm (20') |
